PIR Ceiling Sensor White

SKU: 5090 | VT: VT-8029
5090-2
5090-3
5090-4
5090-5
5090-6
5090-7
5090-8

Product benefits

  • Power saving
  • Available for indoor and outdoor purposes
  • Compatible with most of our models
  • Proven quality from reliable suppliers
  • Wide range of models to choose from

Applications

  • Outdoor areas like parking, garages, gardens and yards
  • Indoor areas like walkways, lobbies and staircases
Downloads
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
Declaration of Conformity
Manual
PPWR Declaration of Conformity
Specifications
General Information
Lifespan
>20 000 hrs
Electrical Data
Voltage
AC: 220-240V
Frequency
50/60Hz
Body Details
Material
Plastic clad Aluminium
Capabilities
Sensor Type
Infrared
Detection Range
360’D
Detection Distance
Max.6m (<24º C)
Detection Motion Speed
0.6 - 1.5m/s
Time Delay
Min. 10sec±3sec. Max. 10min±2min

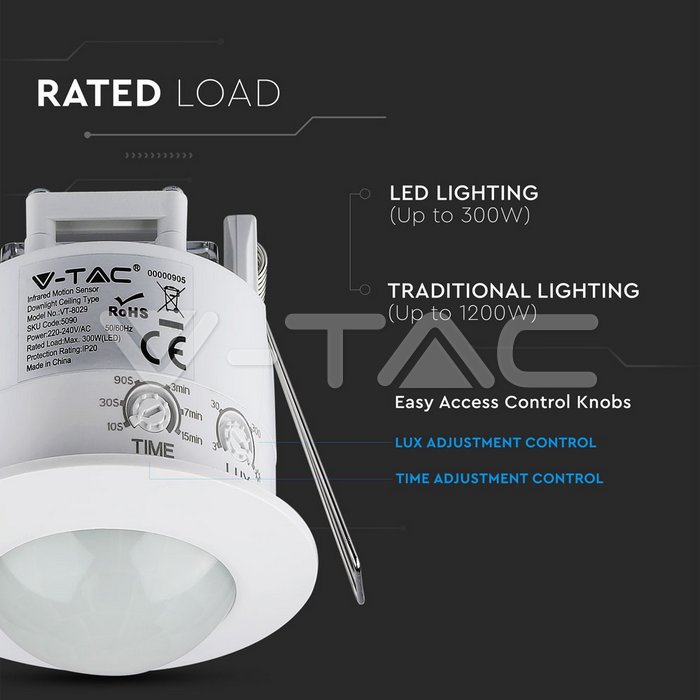

Rated Load
Max.1200W
Ambient Light
<3-2000LUX Adjustable
Sensor
Yes
IP Rating
IP20
Dimensions
Size
76.5 x 61.5 x 76 mm
Product Data
Order code
5090
Product code
VT-8029
Items per pack
1
Item Weight
0,13
Item Volume
0,00068
Items per box
50
EAN Code
3800157609210
Certificates & Standards
Certification
CE, EMC, ROHS
Additional
Warranty
2 years
Dimensions Graphics
Dimensions
Manufacturer
V-TAC
