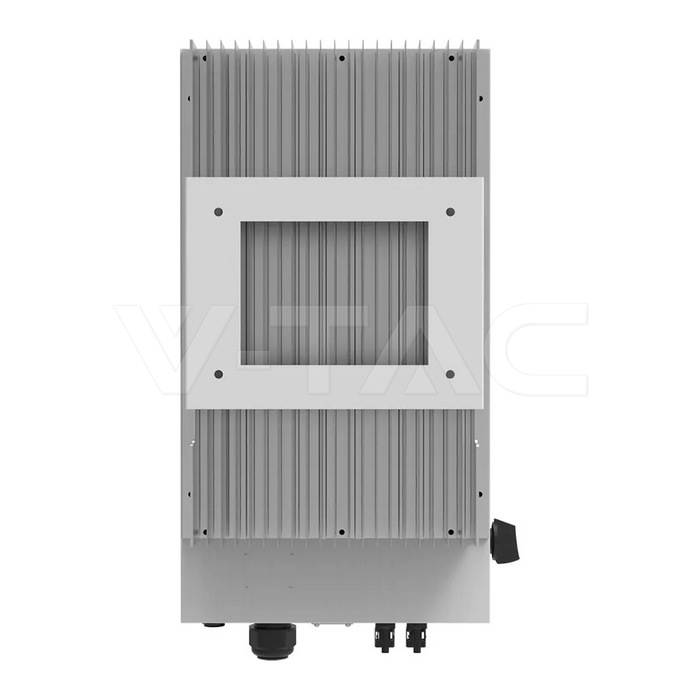

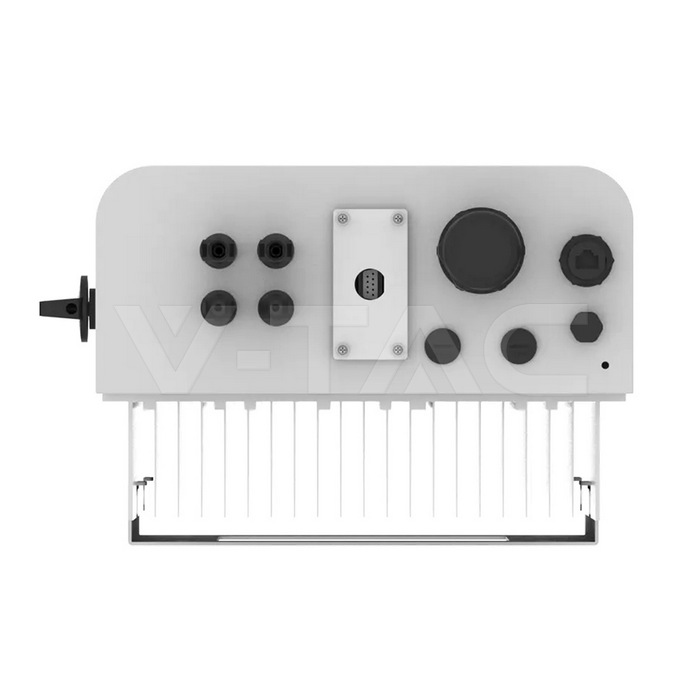

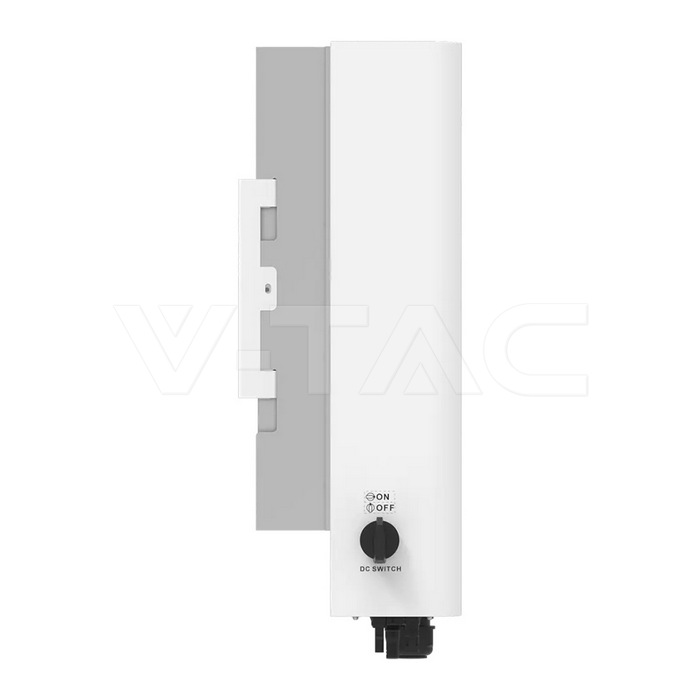

6kW On Grid Solar Inverter Three Phase 380VAC 5yrs Warranty

SKU: 12662 | VT: SUN-6K-G06P3-EU-BM2-P1
12726-12727-12728-12729-12662-12663-2
12726-12727-12728-12729-12662-12663-3
12726-12727-12728-12729-12662-12663-4

Downloads
Manual
EN 50549
Declaration of Conformity
Technical Specifications
EMC License
LVD License
Specifications
General Information
Electrical Data
Current
  • Max. Operating PV Input Current: 20+20A;
  • Max. Input Short Circuit Current: 30+30A;
Wattage
  • Max. PV Input Power: 9kW;
  • Rated AC Output Active Power: 6kW
Phase
Three Phase
Voltage
  • Max. PV Input Voltage: 1100V ;
  • MPPT Voltage Range: 120-1000V;
  • Rated PV Input Voltage: 600V;
  • Start-Up Voltage: 140V;
  • Rated Output Voltage/Range: 220/380V, 230/400V 0.85Un-1.1Un;
Frequency
Rated Output Grid Frequency/Range(Hz): 50/45-55, 60/55-65
Power Factor
0.8 leading to 0.8 lagging
Capabilities
IP Rating
IP65
Working conditions
-25 to +65℃, >45℃ Derating
Dimensions
Size
283 x 525 x 178mm
Product Data
Order code
12662
Product code
SUN-6K-G06P3-EU-BM2-P1
Item Weight
11.5 kg
Items per box
1
Additional
Release Date
22.04.26
Brand
Deye
Warranty
5 years
