12kW Hybrid Solar Inverter Three Phase 380VAC 10YRS Warranty SG05

SKU: 12655 | VT: SUN-12K-SG05 LP3-EU-SM2

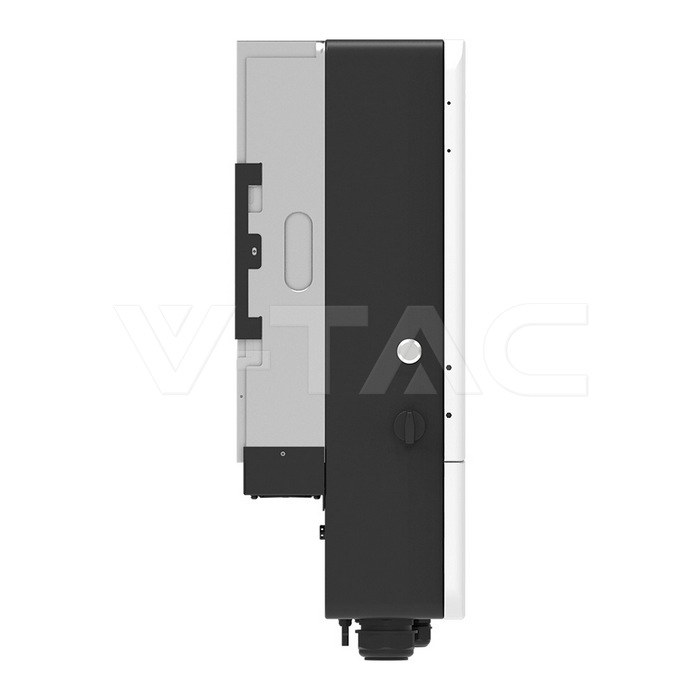

12343-12345-2

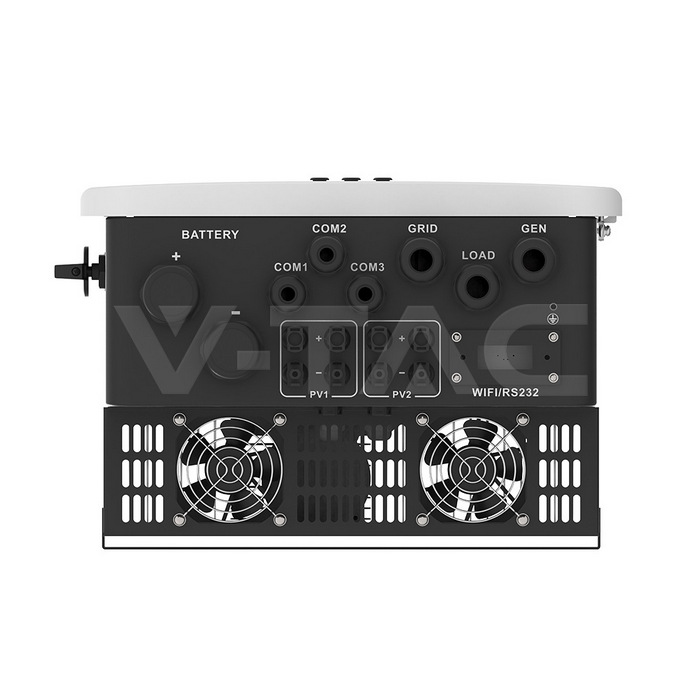

12655-3

Downloads
Manual
Declaration of Conformity
CEI 0-21
|
IEC 61727 - IEC 62116
Certificate of Conformity
Technical Specifications
EMC License
LVD License
TÜV Certificate
Specifications
General Information
Electrical Data
Current
  • Max. Operating PV Input Current (A) 26+26
  • Max. Input Short-Circuit Current (A) 39+39;
  • Rated AC Input/Output Current (A) 18.2/17.4;
  • Max. AC Input/Output Current (A) 20/19.2;
Wattage
  • Max. PV Input Power: 19200W;
  • Rated AC Input/Output Active Power: 12000W;
  • Peak Power (off-grid): 2 times of rated power, 10s;
Phase
Three Phase
Voltage
  • Max. PV Input Voltage: 800V;
  • MPPT Range: 200~650V;
  • Rated PV Input Voltage: 550V;
  • Start-up Voltage: 160V;
Frequency
Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Power Factor
0.8 leading to 0.8 lagging
Capabilities
IP Rating
IP65
Working conditions
-40 to +60℃, >45℃ Derating
Dimensions
Size
386 x 660 x 250 mm
Product Data
Order code
12655
Product code
SUN-12K-SG05 LP3-EU-SM2
Item Weight
35.2 kg
Additional
Release Date
05.11.25
Warranty
10 years
Brand
Deye
