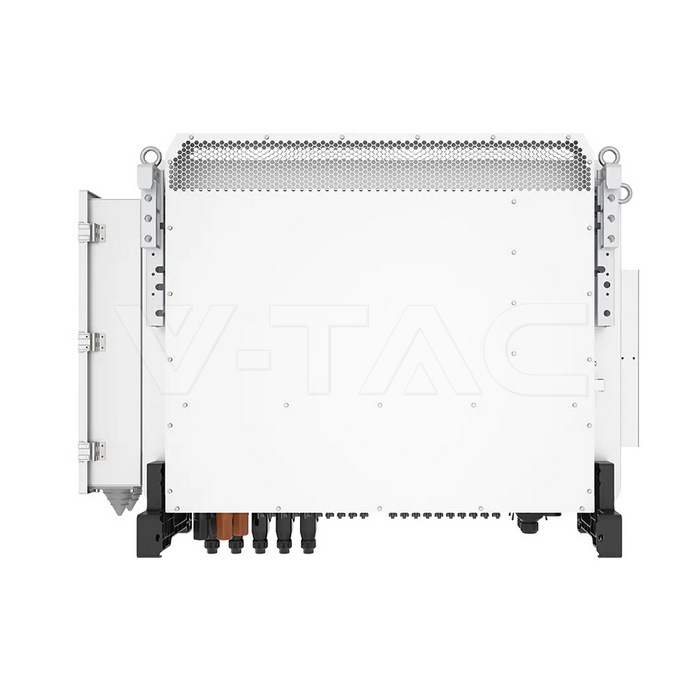

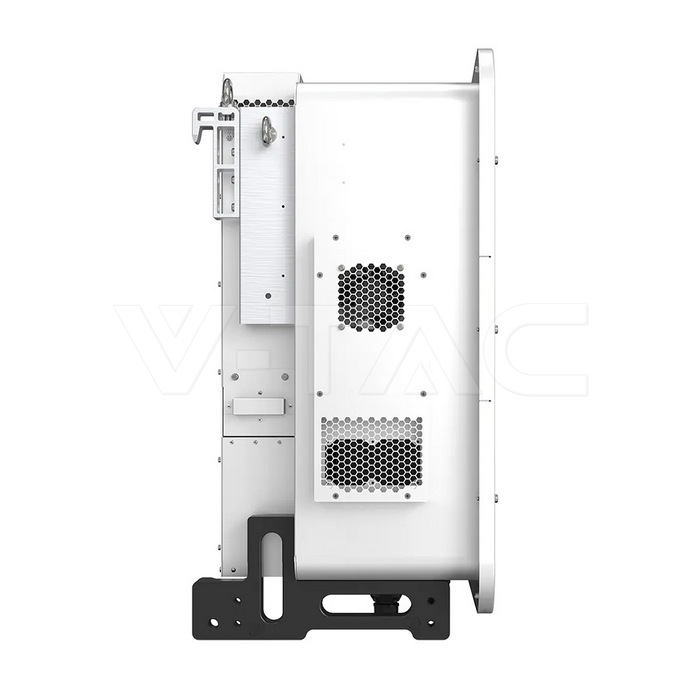

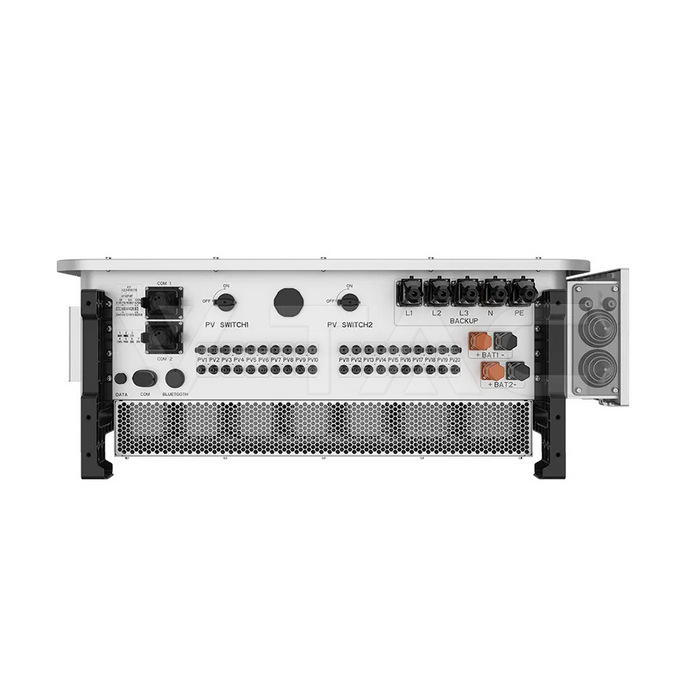

125kW Hybrid Solar Inverter Three Phase High Voltage 10YRS Warranty

SKU: 12677 | VT: S6-EH3P125K10-NV-YD-H
12677-2
12677-3
12677-4
12677-5

Downloads
Manual
Technical Specifications
EMC License
LVD License
Specifications
General Information
Electrical Data
Current
  • Max. input current: 10 × 42A;
  • Max. short circuit current: 10 × 60A;
Wattage
  • Max. usable PV input power: 250kW;
  • Rated output power: 125kW;
  • Max. input AC power: 125kW
Phase
Three Phase
Voltage
  • Max. PV Input Voltage: 1000V;
  • MPPT Range: 150-950V;
  • Rated Voltage: 600V;
  • Start-up Voltage: 180V;
Frequency
Rated Frequency: 50Hz / 60Hz
Power Factor
> 0.99 (0.8 leading - 0.8 lagging)
Capabilities
IP Rating
IP66
Working conditions
-25 ~ +60°C
Dimensions
Size
1174 × 814 × 400 mm
Product Data
Order code
12677
Product code
S6-EH3P125K10-NV-YD-H
Items per pack
1
Item Weight
170 kg
Additional
Release Date
19.12.25
Warranty
10 years
Brand
SOLIS
