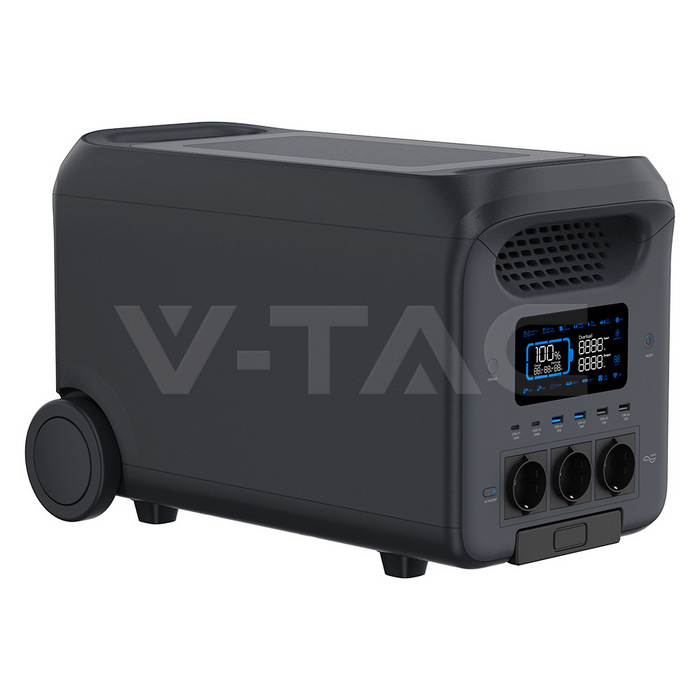

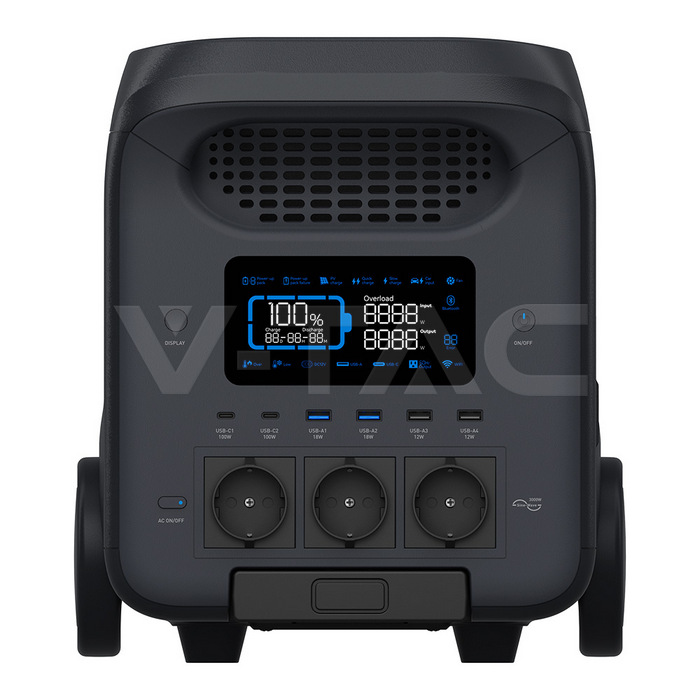

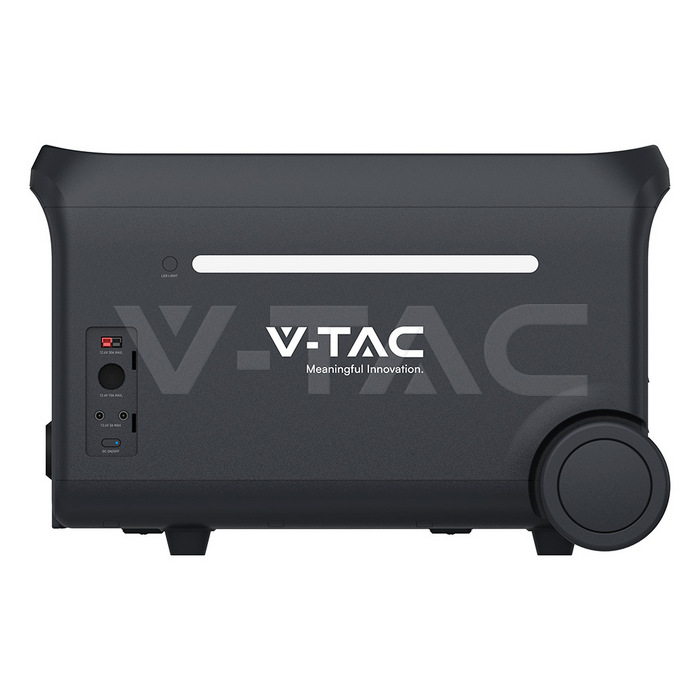

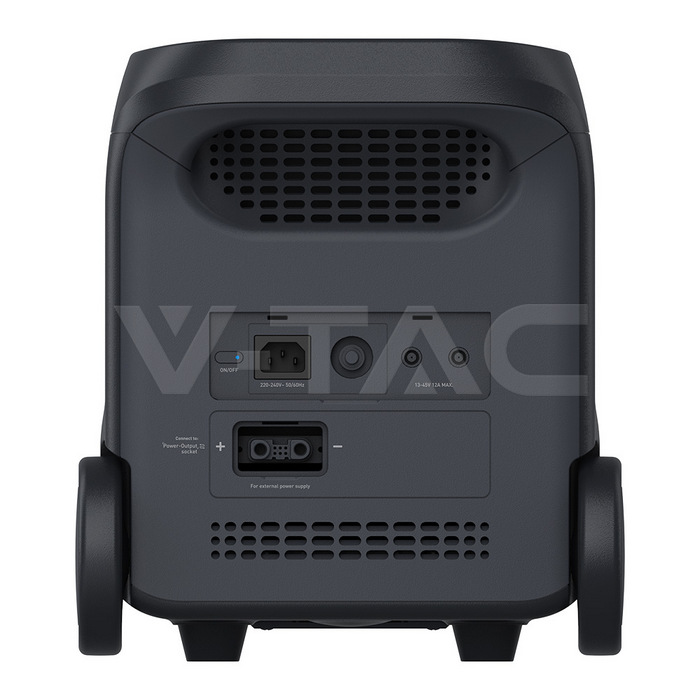

3000W / 2560Wh Portable Power Station with LiFePO4 Battery and Wi-Fi

SKU: 12709 | VT: VT-300011
12709-2
12709-3
12709-4
12709-5

“From

“Reliable

Downloads
Manual
APP|
Warranty Conditions
Declaration of Conformity
CE
SGS
Equipment Runtime
EMC License
Technical Specifications
PPWR Declaration of Conformity
Specifications

“Portable

“Up

“Portable

“Portable


General Information
Electrical Data
Wattage
3000W / 2560Wh
Input
AC Input
AC Input Power: 2300W Max, 10A
AC Input Voltage: 220–240V~, 50Hz/60Hz
PV & Car Charging
PV Charge x 2: 800W Max., 13-45V 12A
Car Charging Input: 12V/24V battery supported, 8A by default
Input Charging Power
AC Charging Power: 2100W Max.
PV / Car Charging Power x 2: 800W Max.
AC + PV Charging Power: 2688W Max.
Output
AC Sockets
AC Socket x 3 (Inverter mode): Pure sine-wave, total 3000W (peak 5000W), 220-240V~, 50Hz/60Hz, 16A
AC Socket (Bypass mode): 220-240V~, 50Hz/60Hz, 2300W Max., 10A Max.
Additional ports
USB-A1/A2: 5V 3A, 9V 2A, 12V 1.5A, 18W Max.
USB-A3/A4: 5V⎓2.4A, 12W Max.
USB-C1/C2: 5/9/12/15V⎓3A, 20V⎓5A, 100W Max.
ANDERSON TERMINAL OUTPUT: 12.6V 30A MAX., 378W Max.
CAR CHARGER: 12.6V 10A, 126W Max.
DC5521 OUTPUT x 2: 12.6V 3A
Notes
Shared Power: Car charge and DC5521 share power, 126W Max.
Inverter mode: AC output comes from the battery, not the grid.
Bypass mode: AC output comes from the grid, not the battery.
Capabilities
IP Rating
IP20
Cells Chemistry
LiFePO4
Battery Capacity
2560Wh,51.2V, 50Ah
Prismatic Aluminum-Cased LiFePO4 Cell
3000 Cycles
Expandable Battery: YES Supports UP TO 6 expansion battery packs, SKU 12710, sold separately.
Working conditions
Optimal operating temperature: 20°C~30°C
Discharge temperature range: -20°C~45°C
Charge temperature range: 0°C~45°C
Storage ambient temperature: -20°C~45°C (20°C~30°C preferred)
Dimensions
Size
303 x 343 x 536mm
Product Data
Order code
12709
Product code
VT-300011
Item Weight
34 kg
Items per box
1
Additional
Release Date
31.03.26
Manufacturer
V-TAC
Warranty
2 years
Additional information
WI-FI supported 30dB Low Working Noise
