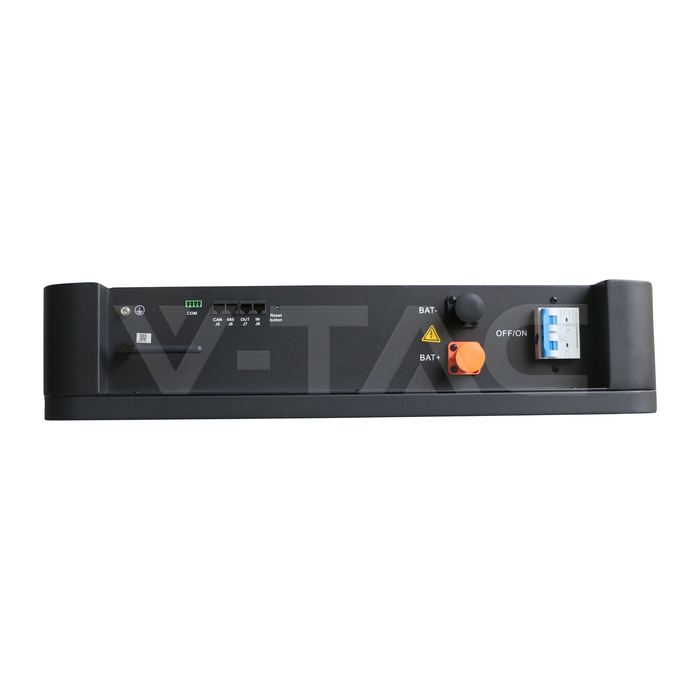

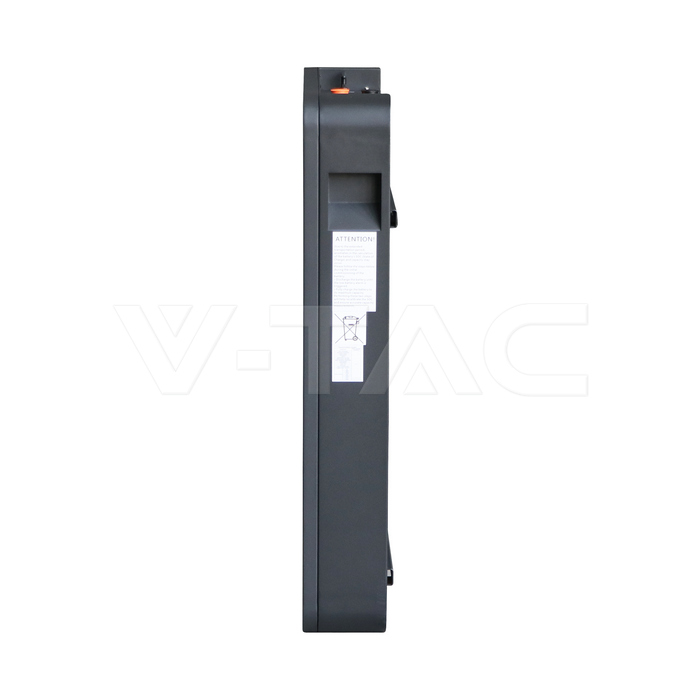

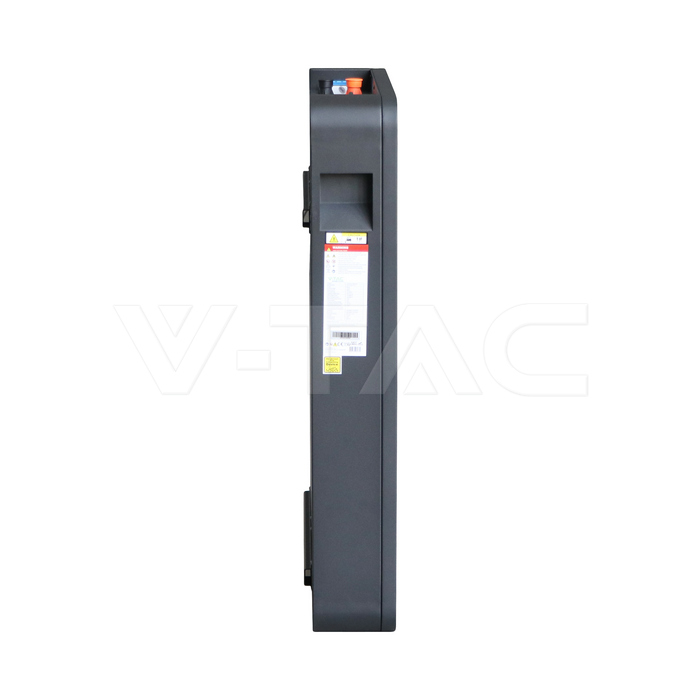

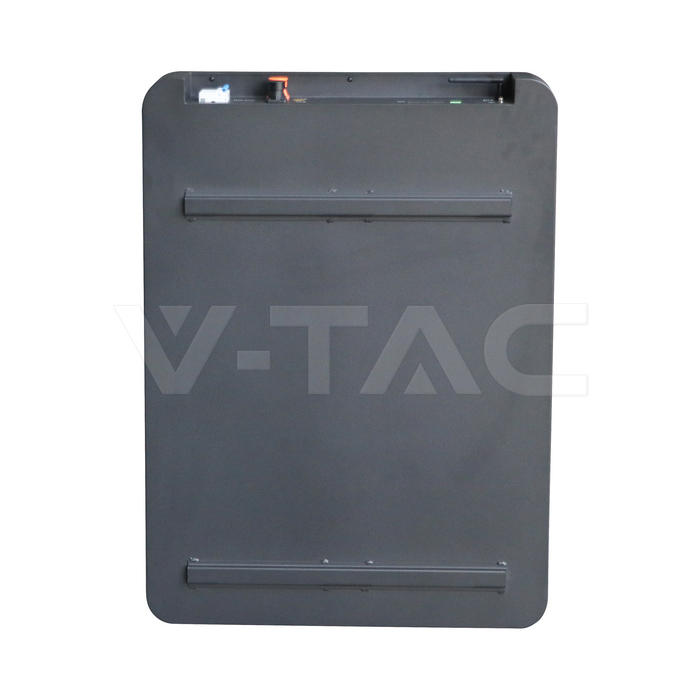

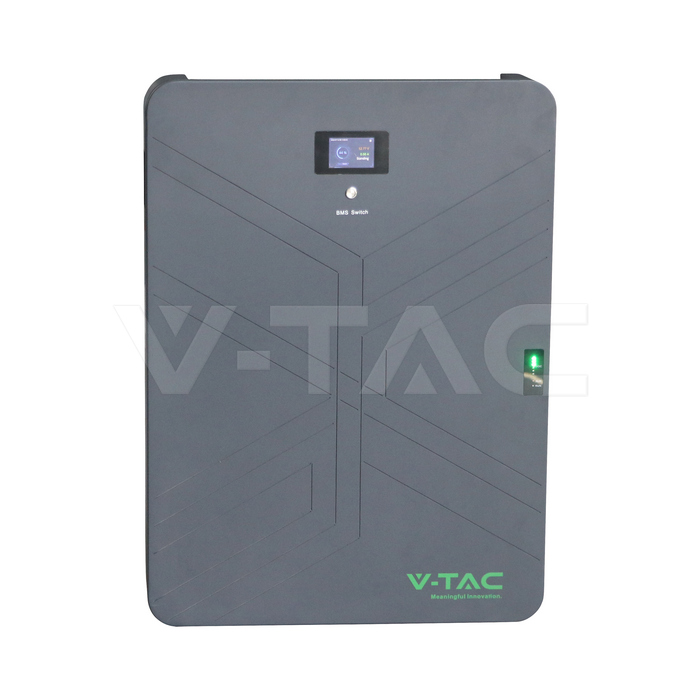

14.33kWh LV LiFePO4 Battery Wall Mounting IP20 8000 Cycles Ultra Thin Black

SKU: 12714 | VT: VT-14033
12714-2
12714-3
12714-4
12714-5
12714-6

Downloads
Manual
Warranty Conditions
Technical Specifications
CEI 0-21
Declaration of Conformity
IEC 62619
CE
Specifications

“14.33kWh


General Information
Electrical Data
Current
  • Standard Charge/Discharge Current: 130A;
  • Maximum Continuous Charge/Discharge Current: 140A;
Wattage
14.33kWh
Voltage
51.2V
Body Details
Mount
Wall Mounting
Capabilities
IP Rating
IP20
Cells Chemistry
LiFePO4
Battery Capacity
280 Ah / 8000 cycles
Working conditions
  • Charge temperature range: 0 ~ 60°C;
  • Discharge temperature range: -20 ~ 60°C;
Dimensions
Size
660 x 154 x 900mm
Product Data
Order code
12714
Product code
VT-14033
Items per pack
1
Additional
Release Date
09.07.26
Brand
V-TAC
Warranty
10 Years
