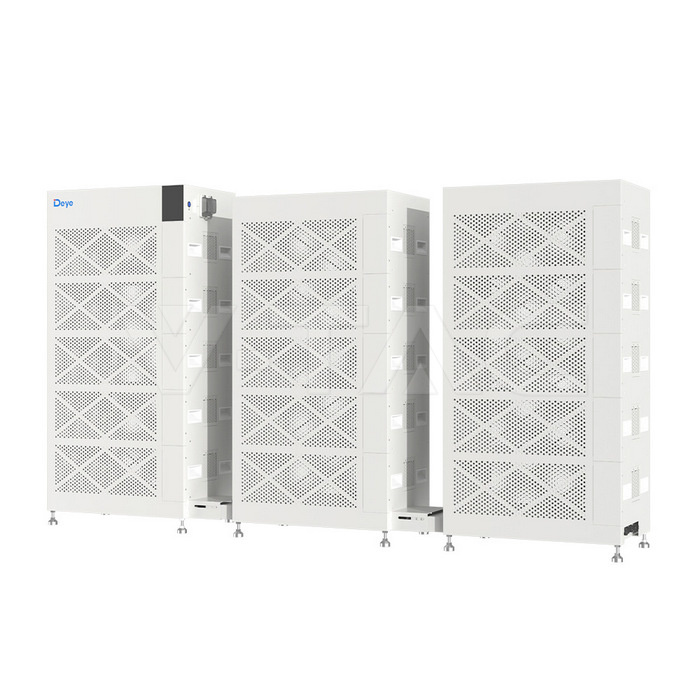

120kWh HV LiFePO4 GB-W-Pack12-2-A3 Battery Set Deye

SKU: 12821 | VT: GB-W-Pack12-2-A3
12821-2

The PV Set includes:

  • 10 pcs – 12.03kWh GB-W-Pack12-2-A3 Battery;
  • PDU, Top cover, Base, Telescopic Slide Rail
Downloads
Manual
Declaration of Conformity
Technical Specifications
Specifications
General Information
Electrical Data
Current
  • Max. Continuous: 230V;
  • Peak: 322 (1s);
  • Max. Output Current: 230A
  • Max. Input Short-Circuit Current: 6000A @3S;
Wattage
  • System Energy: 120.3kWh (12.03 kWh x 10);
  • System Usable Energy: 108.2 kWh;
  • Max. DC Power: 117.7 kW;
Voltage
  • System Nominal Voltage: 512V;
  • System Operating Voltage: 416-584;
Body Details
Mount
Stackable
Capabilities
IP Rating
IP20
Battery Capacity
Module: 235Ah
Cells Chemistry
LiFePO4
On/Off cycles
25±2℃, 0.5C/0.5C, 70%EOL > 6000 cycles
Working conditions
Battery pack: 0~55℃ Charge / -20~55℃ Discharge
Dimensions
Size
  • PDU: 690 × 436 × 151.2;
  • Battery pack: 690 × 436 × 270;
  • Top cover: 690 × 436 × 90;
  • Base: 690 × 436 × 117;
  • Telescopic Slide Rail: 200 - 300 (stroke);
Product Data
Order code
12821
Product code
GB-W-Pack12-2-A3
Item Weight
  • PDU: 20.8 kg;
  • Battery pack: 93 kg;
  • Top cover: 6 kg;
  • Base: 14 kg;
Additional
Release Date
28.08.26
Brand
Deye
Additional information
  • Fire Protection System / Fire Suppression: Aerosol;
  • Type Of Cooling: Natural air cooling;
  • Display: Display screen;
  • DC Switch: Yes;
  • Safety EMC/Standard: IEC62477;
  • Communication Port: CAN / RS485;
  • Communication Protocol: modbus RTU;
  • Communication Method: Bluetooth;
Warranty
10 years
