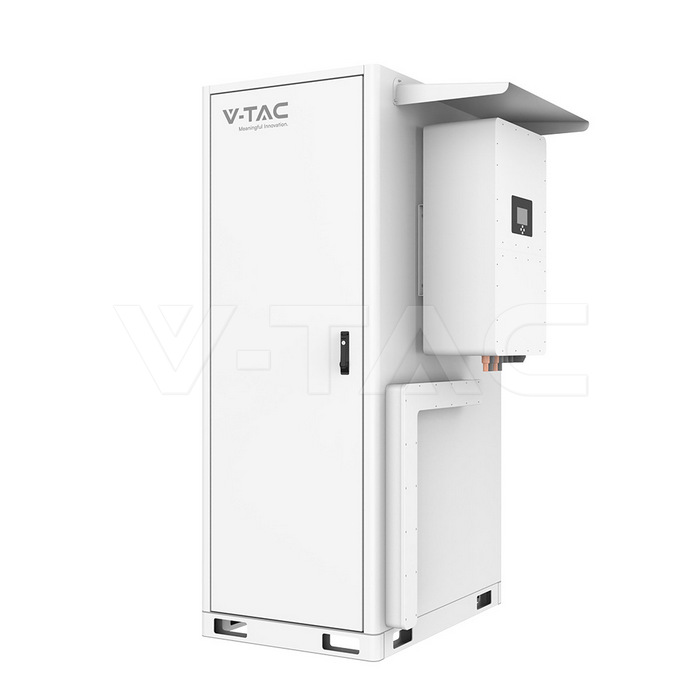

100kWh LiFePO4 Energy Storage System Outdoor Air Cooling IP55

SKU: 12683 | VT: OHR100.3K-280
12683-2
12683-3
12683-4
12683-5
12683-6
12683-7
12683-8
12683-9
12683-10
12683-11

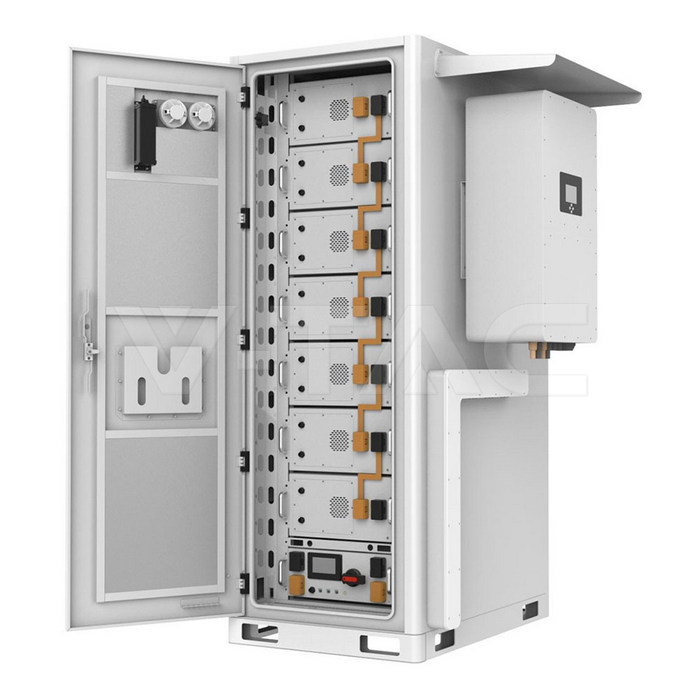

The Set includes:

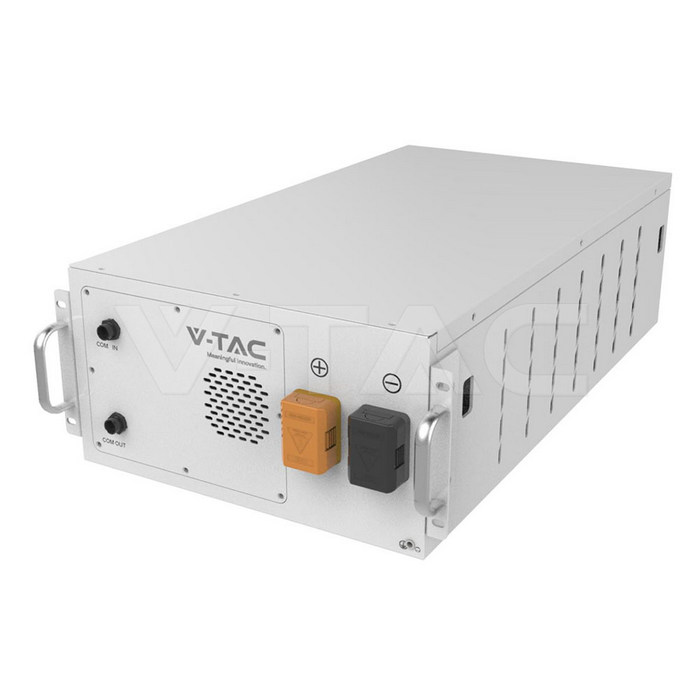

  • 7 pcs – 14.33kWh Battery LiFePO4;

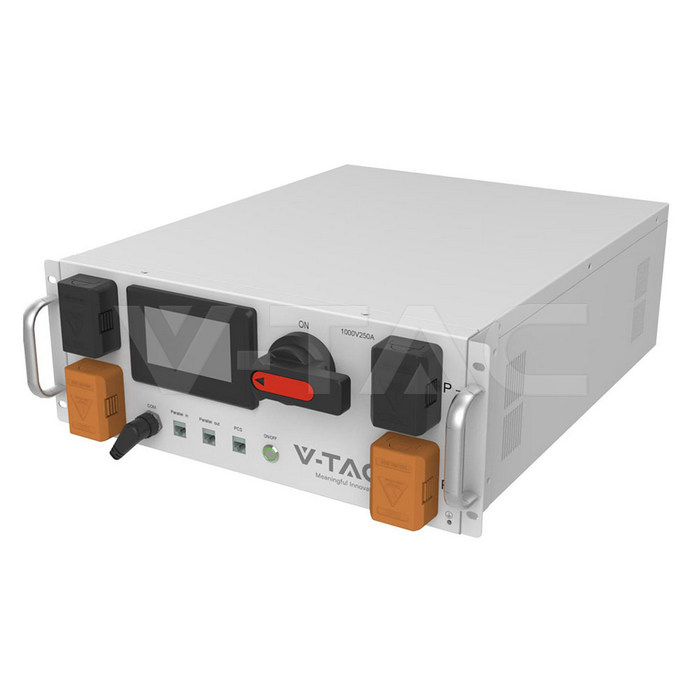

  • 1 pc – Battery Cluster Control Box;

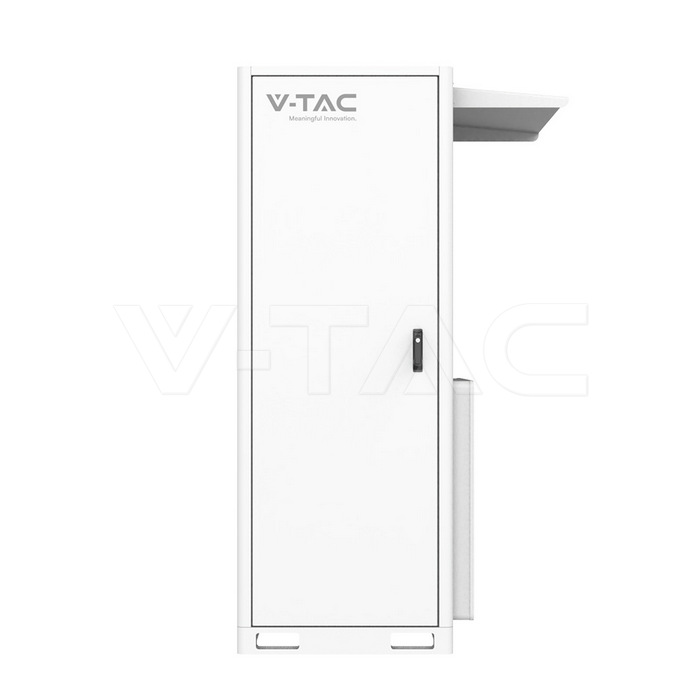

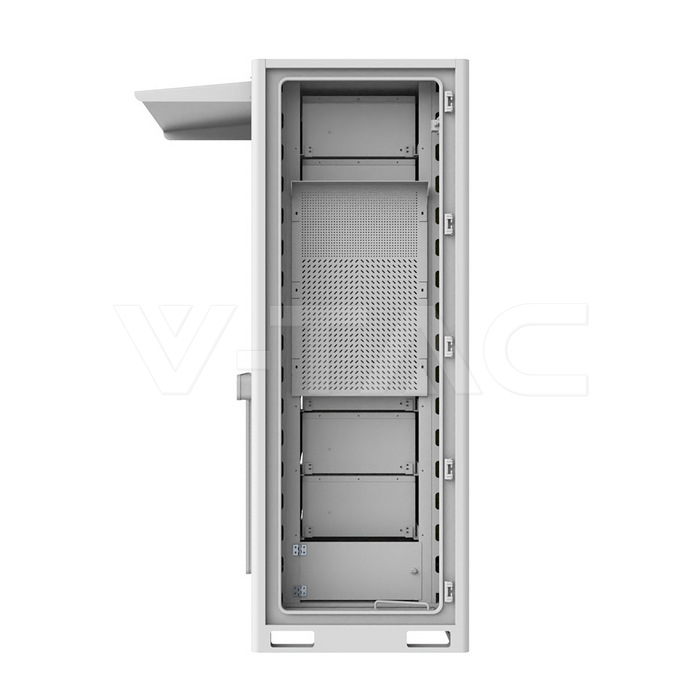

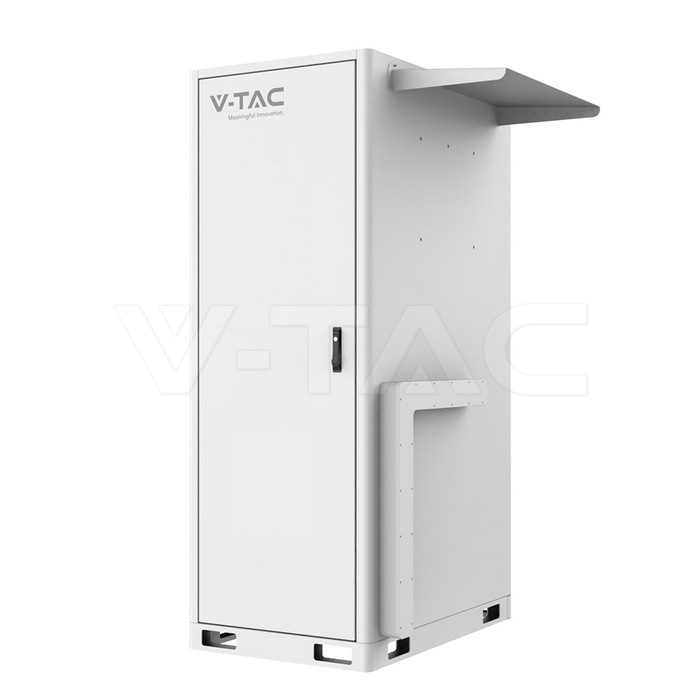

  • 1 pc – Outdoor Waterproof cabinet;

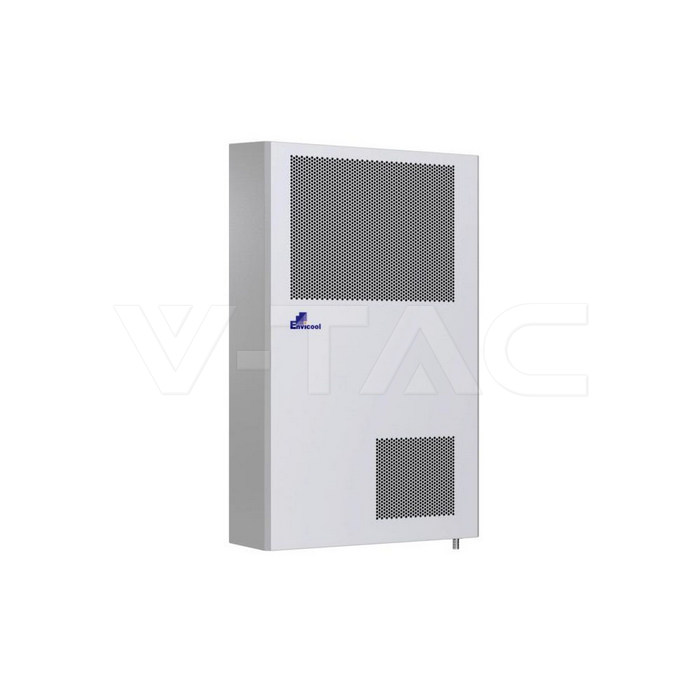

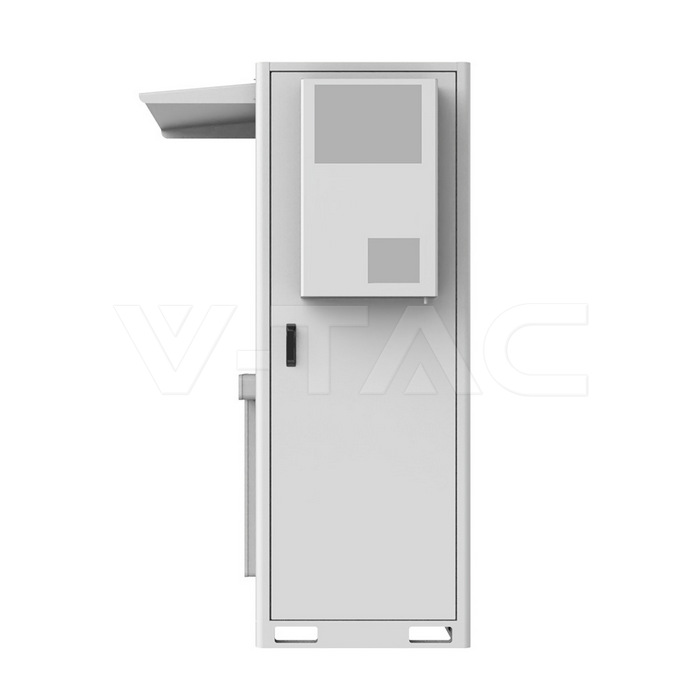

  • 1 pc – Outdoor Air-cooling cabinet;
Downloads
Manual
|
Expansion and Use Statement
IEC 62619
Technical Specifications
PPWR Declaration of Conformity
Specifications
General Information
Electrical Data
Current
  • Recommend Charge/Discharge Current: 100A;
  • Max. Charge/Discharge Current: 140A;
Wattage
100kWh (14.33kWh x 7)
Voltage
  • System Nominal Voltage: 358.4V;
  • System Operating Voltage: 336.0~403.2V;
Body Details
Mount
On a Rack
Capabilities
IP Rating
IP55
Battery Capacity
Module: 280Ah (LiFePO4)
Working conditions
  • Working Temperature: -20℃ ~55℃;
  • Storage Temperature: 0~35℃;
Cells Chemistry
LiFePO4
Dimensions
Size
895 x 1367 x 2179mm
Product Data
Order code
12683
Product code
OHR100.3K-280
Item Weight
~1395 kg
EAN Code
3800170258815
Additional
Release Date
20.01.26
Warranty
10 years
Additional information
The system works with Inverter 50kW, SKU12294 and Inverter 50kW, SKU11861.
Brand
V-TAC
