LED Tube T8 22W 150 cm Nano Plastic Non Rotation White

SKU: 6310 | VT: VT-1577
Replaced with 216310
6265-2
6265-3
6265-4
6265-5
6265-6
6265-7

Product benefits

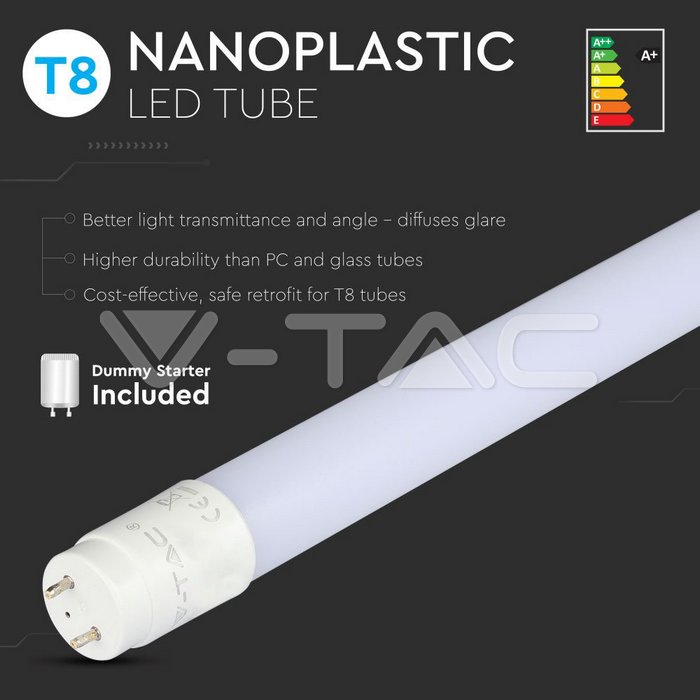

  • Cost effective, safe retrofit for T8 Tubes
  • Perfectly matches with the traditional daylight tube fixture
  • Easy Installation
  • No Lead or Mercury content hence Environment friendly
  • No Ultraviolet or Infrared rays
  • No flickering
  • Long Lifespan, Low maintenance and energy saving
  • Available in 60 cm, 120 cm, 150 cm & 180 cm
  • Ballast or Starter NOT REQUIRED – DIRECT AC POWER

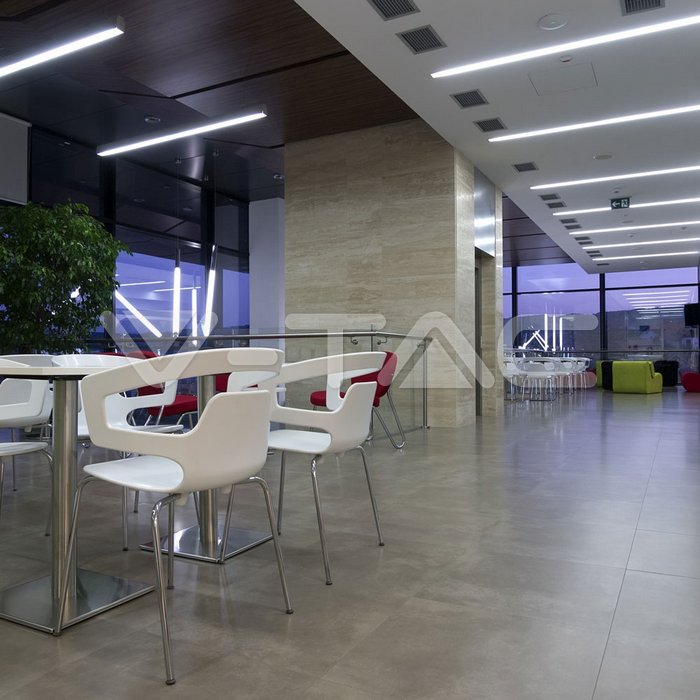

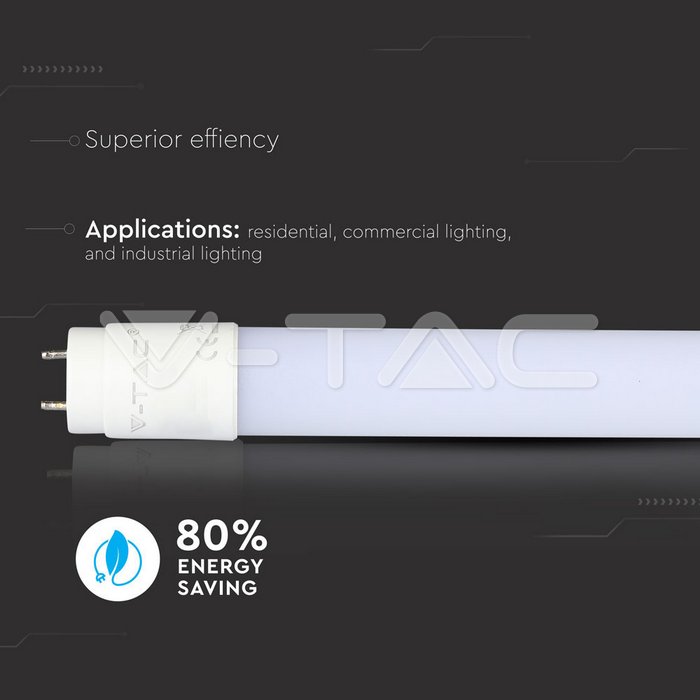

Applications

  • Domestic and Commercial Lighting
  • Offices
  • Supermarkets
  • Shops, Hotels & similar environment
Downloads
TÜV Certificate
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
IES File
Manual
Product Information Sheet
Declaration of Conformity
Specifications
General Information
LED Chip
SMD
Lifespan
20000 hrs
Holder type
G13
Electrical Data
Wattage
22W
EQ. Wattage
55W
Voltage
AC: 220-240V
Frequency
50Hz
Power Factor
> 0.5
Technical Data
Light color
White
Color Temperature
6400K
Luminous flux (lm)
1900 lm
Color Rendering Index CRI
>80
Body Details
Material
Nano-Plastic
Capabilities

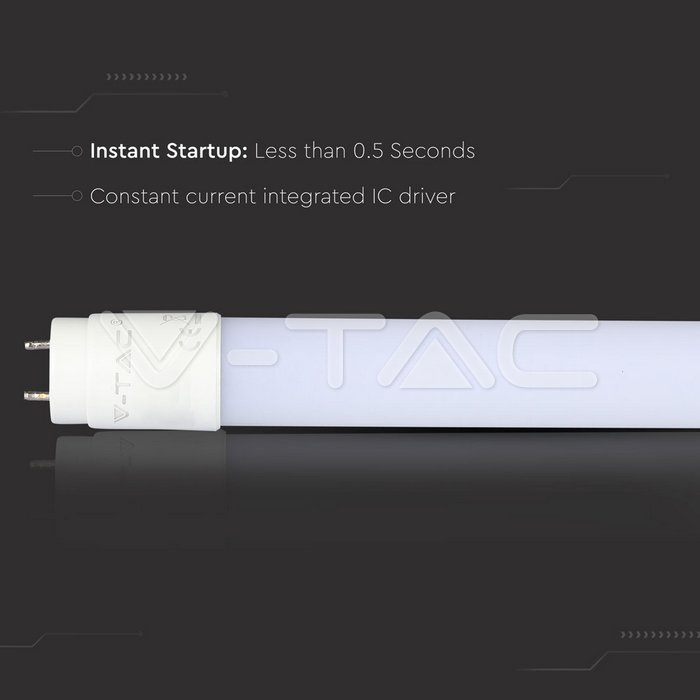

Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
Luminous intensity, Cd
365.93 Cd Max.
On/Off cycles
15000
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
IP Rating
IP20
Rotation
No

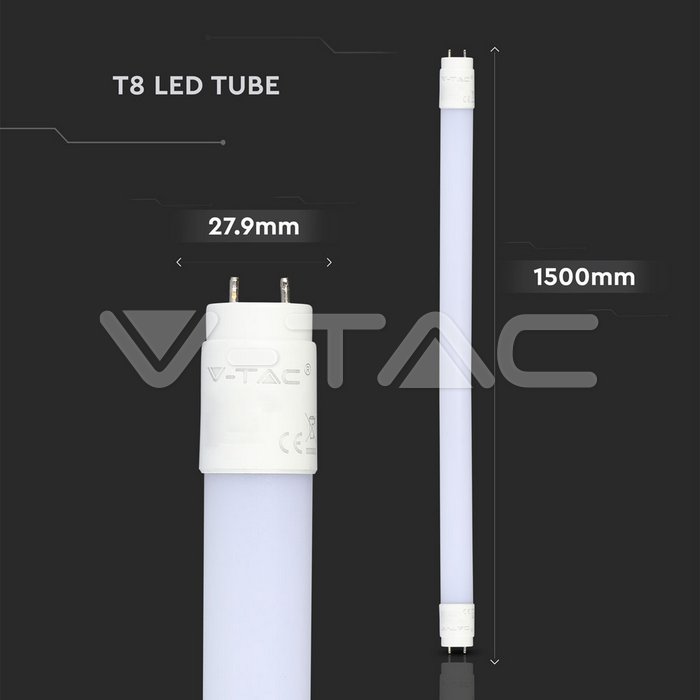

Dimensions
Diameter
28 mm
Length Tube
1500 mm
Product Data
Order code
6310
Product code
VT-1577SMD
Items per pack
1
Item Weight
0.265
Item Volume
0,001377
Items per box
25
EAN Code
3800157617444
Certificates & Standards
Certification
CE, EMC, ROHS
Energy efficiency class
F
Additional
Brand
V-TAC
Warranty
3 years
Dimensions Graphics
Dimensions
Energy Class Graphics
Energy Class
