257kWh HV LiFePO4 BOS-B PRO-A3 Battery Set Deye

SKU: 12820 | VT: BOS-B-A3

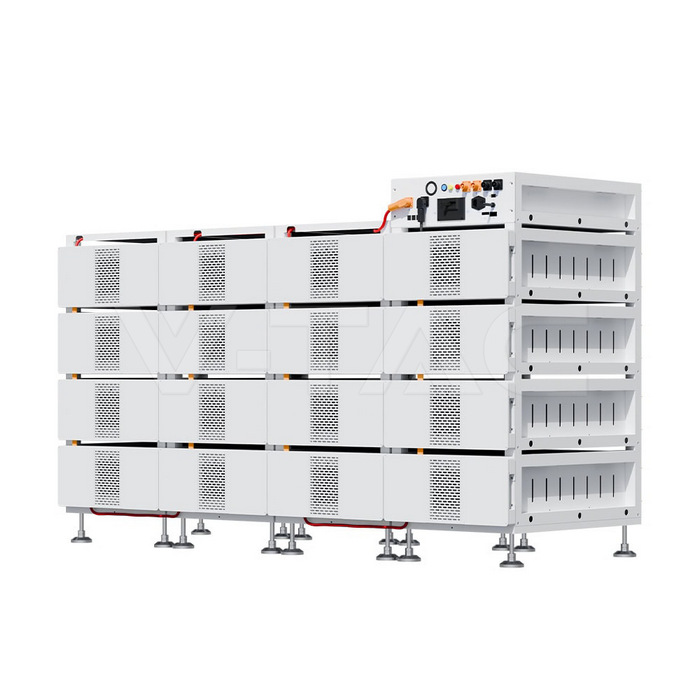

12820-2

The PV Set includes:

  • 16 pcs – 16.08kWh BOS-B-PRO Pack Battery;
  • Battery Cluster Control Box;
  • Battery Racks;
Downloads
Manual
|APP|BConfig
IEC 63056
IEC 62619
Technical Specifications
EMC License
LVD License
Specifications
General Information
Electrical Data
Current
Max.Charge/Discharge Current: 180A
Wattage
  • System Energy: 257.28kWh (16.08 kWh x 16);
  • System Usable Energy: 231.48 kWh;
  • Max. DC Power: 147.46 kW;
Voltage
  • System Nominal Voltage: 819.2V;
  • System Operating Voltage: 665.6-934.4;
Body Details
Mount
On a Rack
Capabilities
IP Rating
IP20
Battery Capacity
Module: 314Ah
Cells Chemistry
LiFePO4
Working conditions
Charge：0 ~ 55℃ Discharge：-20 ~ 55℃
Dimensions
Size
2150 × 1136 × 800 mm
Product Data
Order code
12820
Product code
BOS-B-A3
Additional
Release Date
15.09.26
Brand
Deye
Additional information
  • Model: BOS-B256 Pro-A3;
  • Battery Module Qty in Series: Max. 16;
  • Composition: BOS-B-Pack16-AX*16+BOSB-PDU-2-A *1;
Warranty
10 years
