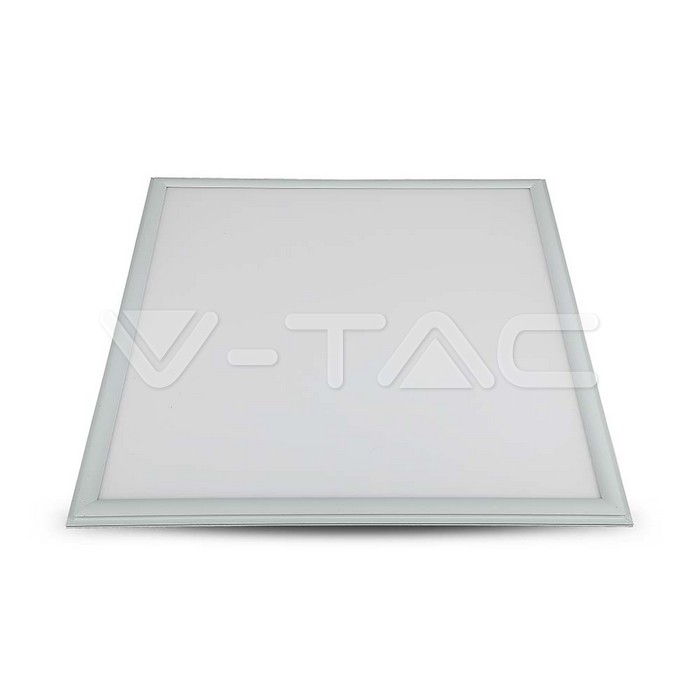

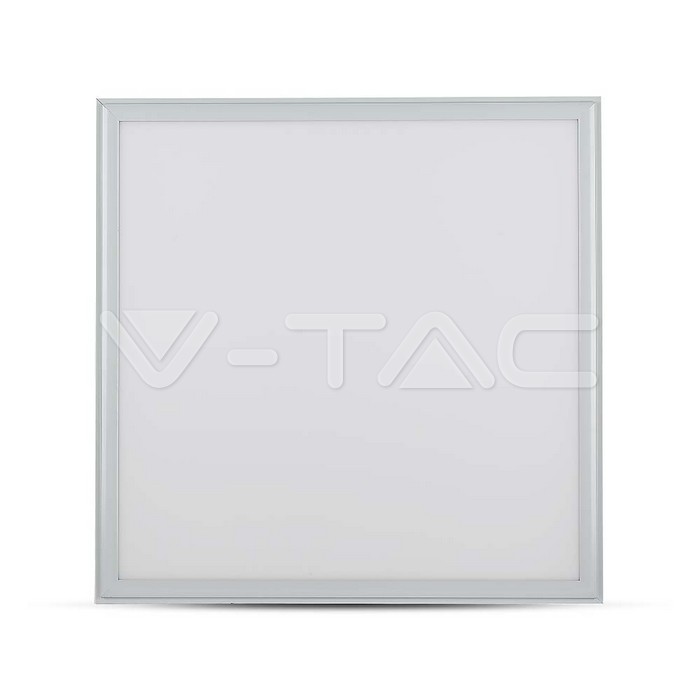

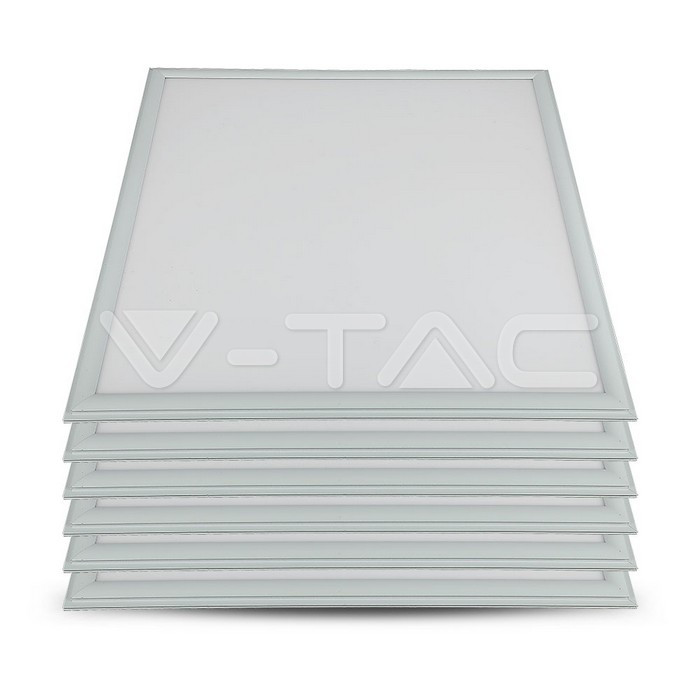

LED Panel 36W 620 x 620 mm 4000K UGR<19 incl Driver 6PCS/SET

SKU: 2162176 | VT: VT-6069
2162176-2
2162176-3
2162176-4
2162176-5
2162176-6
2162176-7
2162176-8
2162176-9
2162176-10
2162176-11
2162176-12

Product benefits

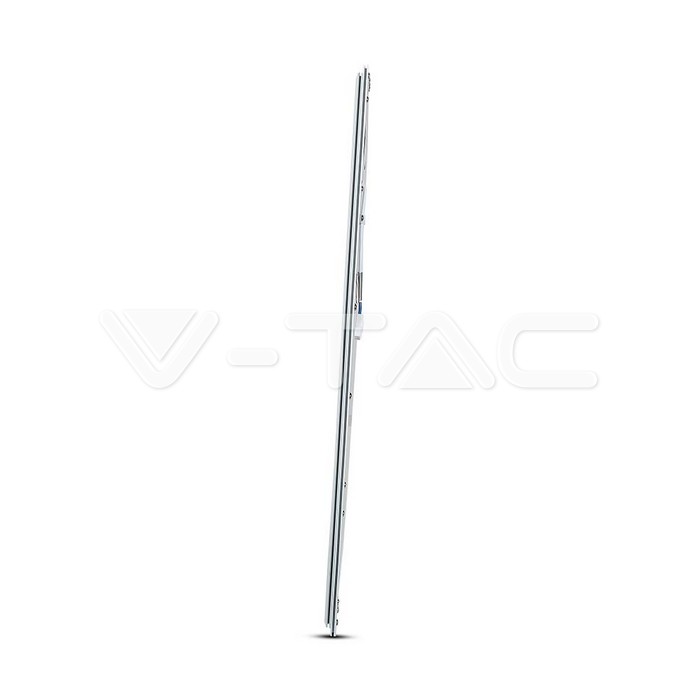

  • Ultra Slim, Contemporary & Elegant Design
  • Higher Light Transmission Rate
  • Exterior shell, cannot be easily damaged
  • No infrared, does not attract flies
  • Easy to install
  • No Lead or Mercury content
  • Environment friendly
  • Dimmable options available in selected models

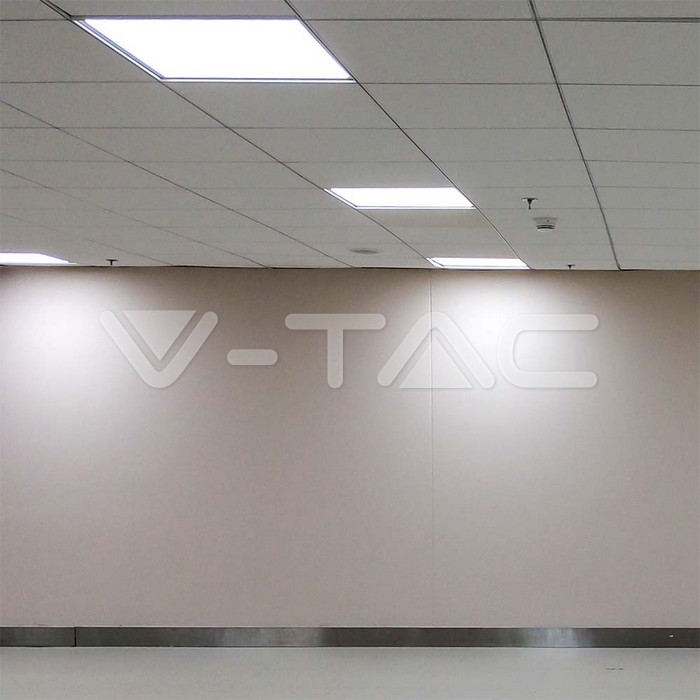

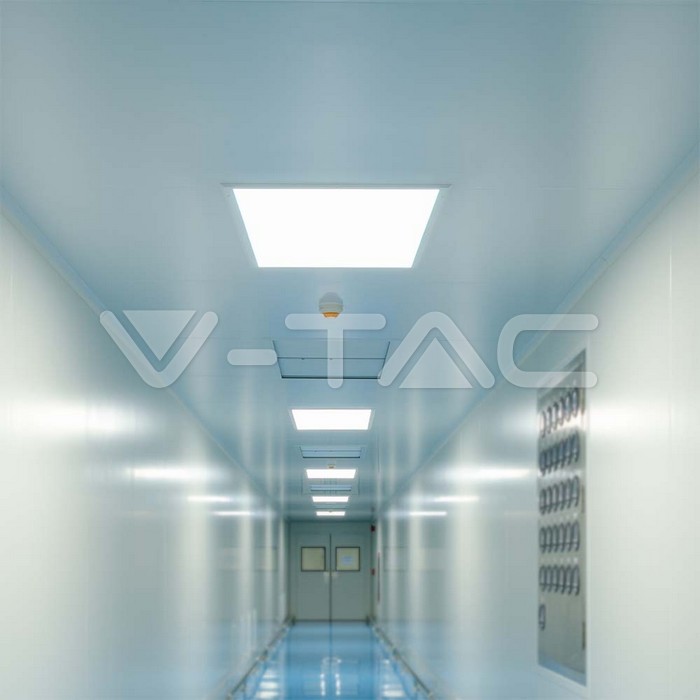

Applications

  • Office Lighting
  • Conference Halls
  • Hospitals
  • Hotels
  • Shopping Malls
  • Showroom and lobby cabin etc.
    • Kitchen and Domestic Lighting
Downloads
Product Information Sheet
Manual
Declaration of Conformity
RoHS Report
ЕМС Report
EMC License
LVD License
RoHS License
LVD Report
Specifications
General Information

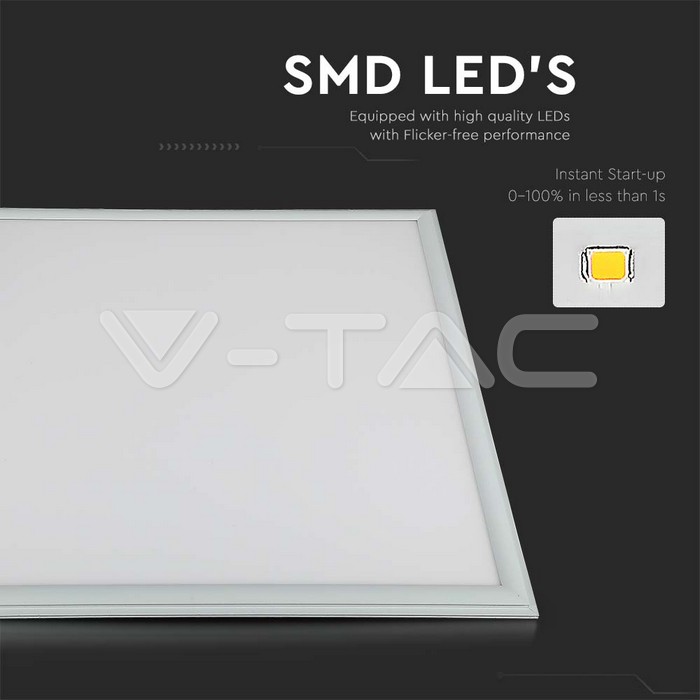

LED Chip
SMD
Lifespan
25,000 hrs
Electrical Data
Wattage
36W
Voltage
AC: 200-240V
Frequency
50/60 Hz
Power Factor
>0.9
Technical Data
Light color
Natural White
Color Temperature
4000K
Luminous flux (lm)
3100 lm
Color Rendering Index CRI
>80

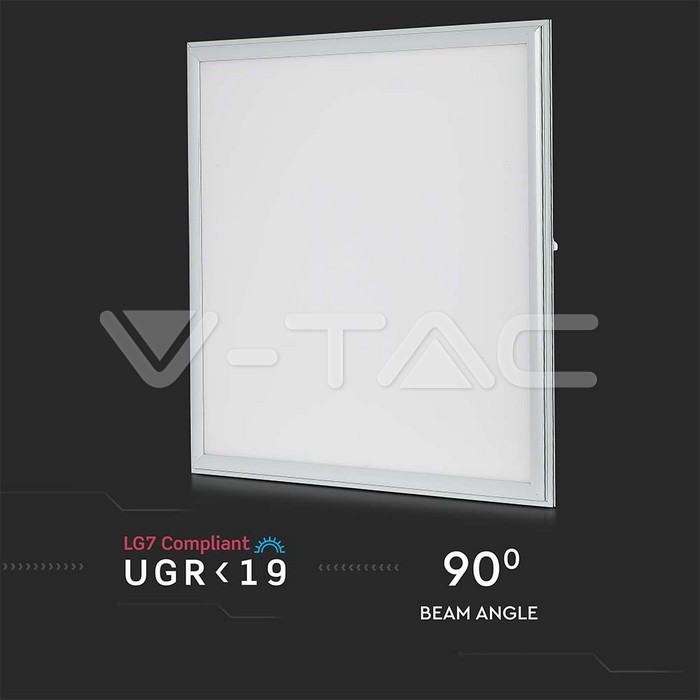

Beam angle
90°
Body Details

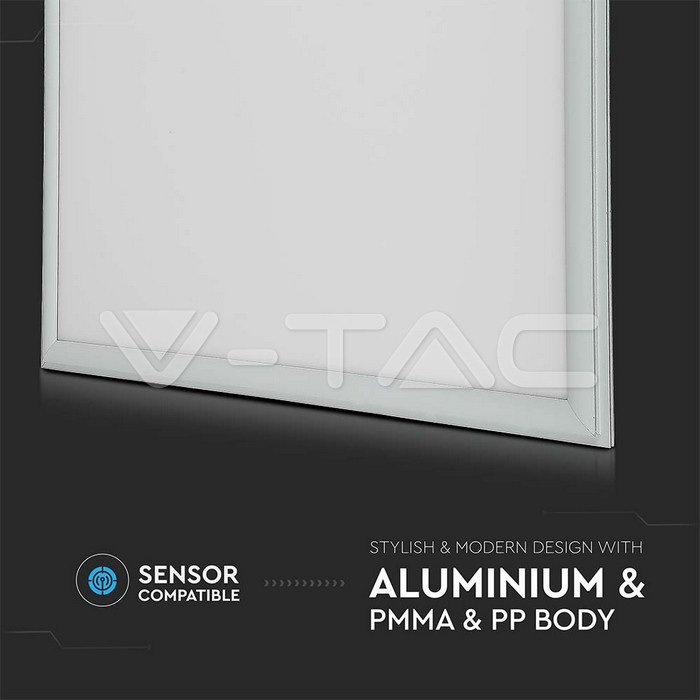

Material
Aluminium + PMMA + PP
Capabilities
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
On/Off cycles
>15 000
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +40°
IP Rating
IP20

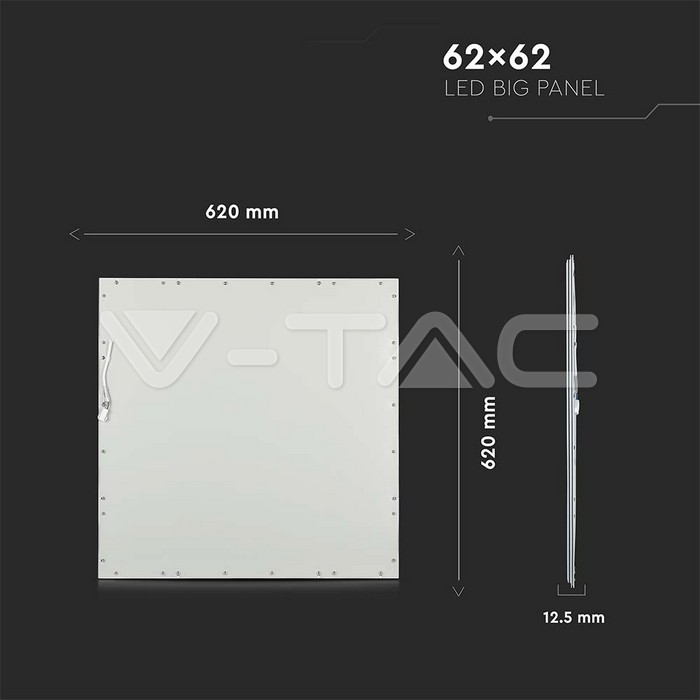

Dimensions
Size
620 x 620 x 12.5 mm
Product Data
Order code
2162176
Product code
VT-6069
Items per pack
1
Item Weight
3,15
Item Volume
0,011088
Items per box
6
EAN Code
3800157676984
Certificates & Standards
Energy efficiency class
F
Certification
CE, EMC, ROHS
Additional
Warranty
2 years
Energy Class Graphics
Energy Class
Manufacturer
V-TAC
