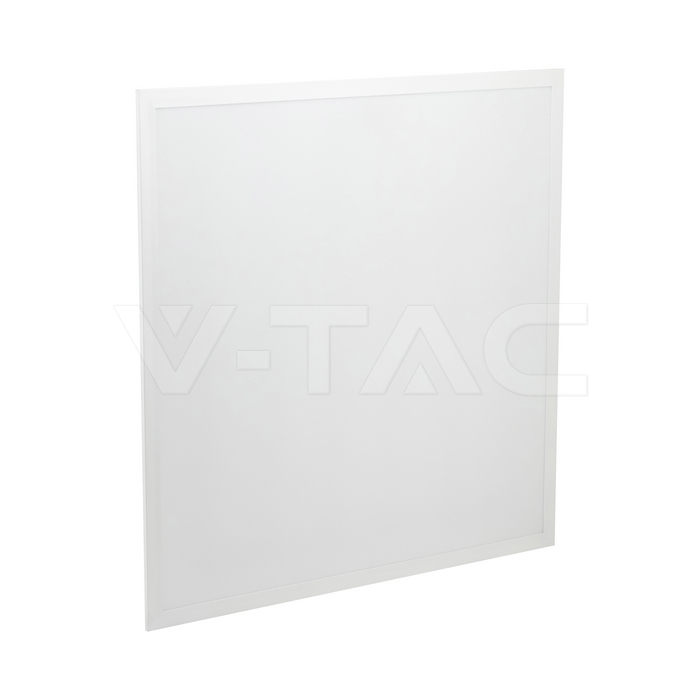

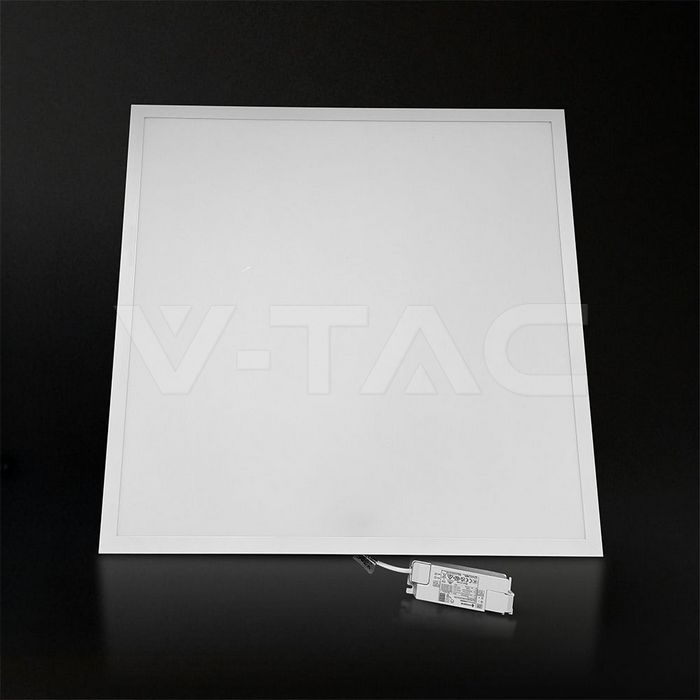

LED Panel 20W 600x600mm Backlit 180 lm/W 4000K 10pcs/Set

SKU: 24280 | VT: VT-61020
24280-a
24280-b
24280-c
24280-d
24280-2
24280-3
24280-4
24280-5
24280-6
24280-7
24280-8
24280-9

Downloads
Manual
Product Information Sheet
PPWR Declaration of Conformity
Specifications
General Information

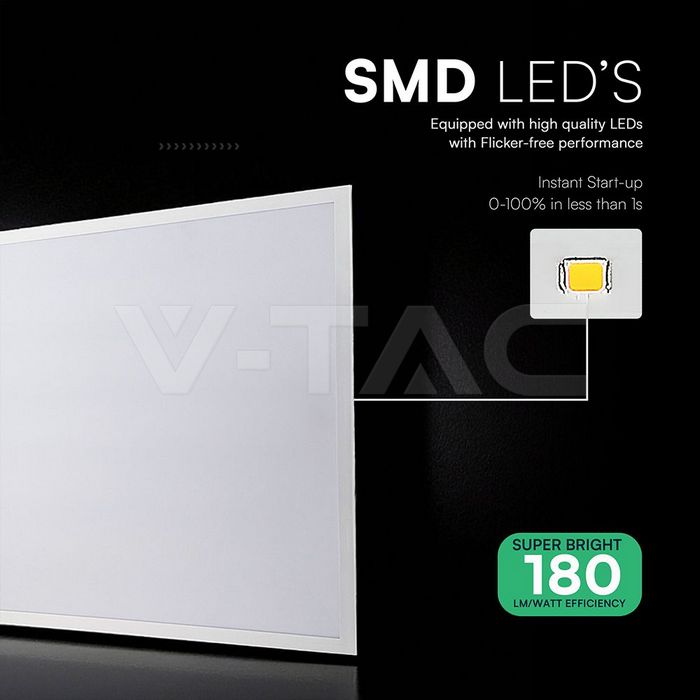

LED Chip
SMD
Lifespan
30 000 hrs
Electrical Data
Wattage
20W
Voltage
AC:220-240V
Frequency
50/60Hz
Power Factor
>0.9
Technical Data

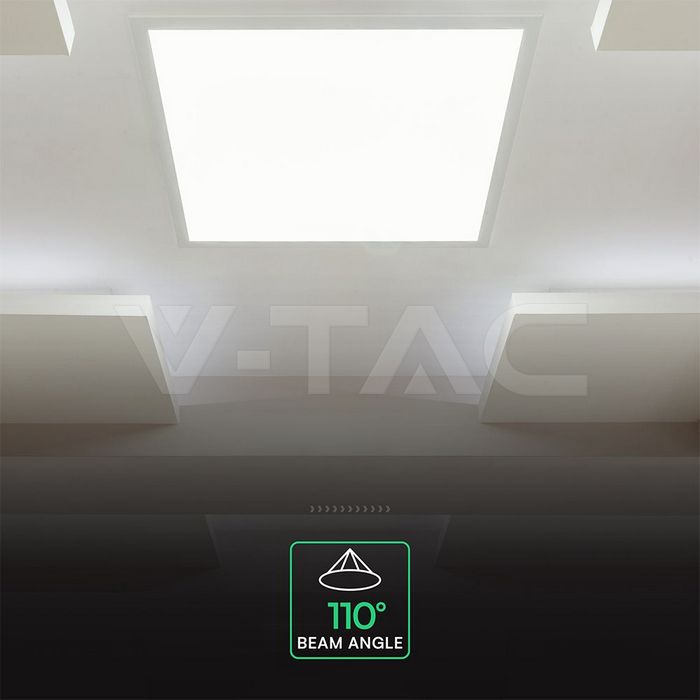

Beam angle
110°
Luminous efficiency (lm/W)
180 lm/W
Light color
Natural White
Color Temperature
4000K
Luminous flux (lm)
3600 lm
Color Rendering Index CRI
>80
Body Details

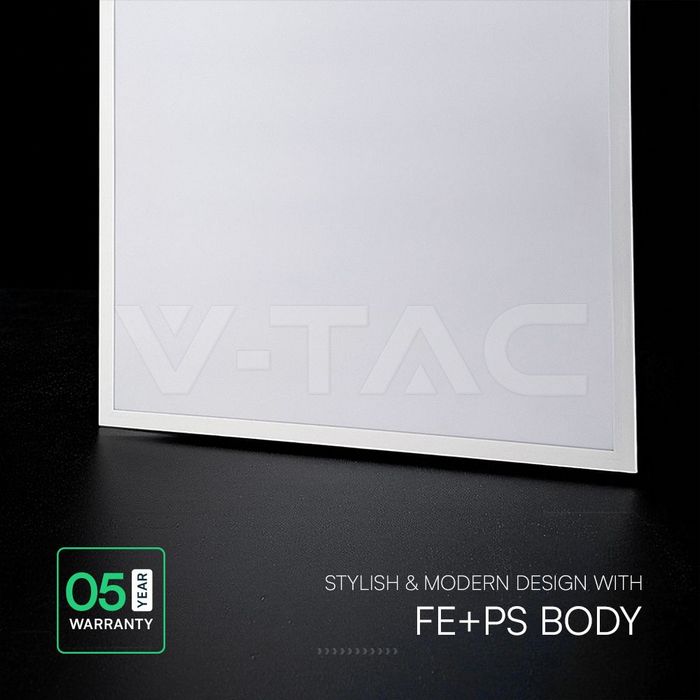

Material
FE+PS
Capabilities
IP Rating
IP20
Starting Time 100% ON
0.001 sec (instant on)
On/Off cycles
>20000
Working conditions
-10°C to +35°C
Dimensions

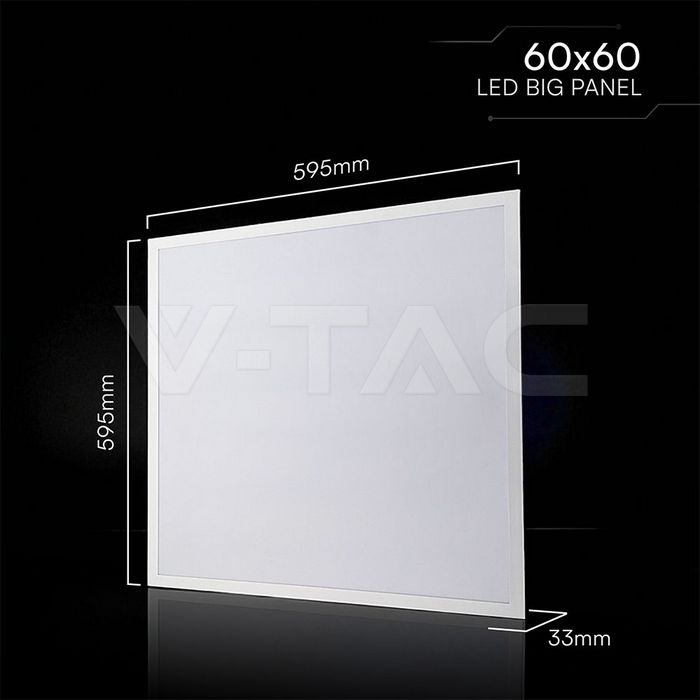

Size
595x595x33mm
Product Data
Order code
24280
Product code
VT-61020
Items per pack
1
Item Weight
1.44
Item Volume
0.014754
Items per box
10
EAN Code
3800170259522
Certificates & Standards
Certification
CE, EMC, ROHS
Energy efficiency class
C
Additional
Release Date
22.05.26
Manufacturer
V-TAC
Warranty
5 Years
Energy Class Graphics
Energy Class
