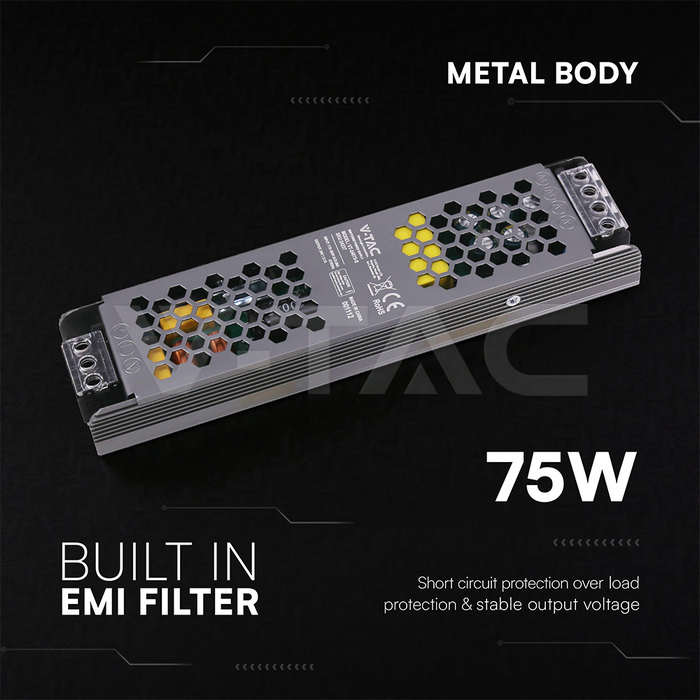

SLIM Power Supply 75W 24V 3.5A IP20

SKU: 24237 | VT: VT-24075-S
24237-2
24237-3
24237-4

Downloads
Manual
PPWR Declaration of Conformity
Specifications
General Information
Lifespan
20 000 hrs
Electrical Data
Wattage
75W
Current
3.1A
Voltage
AC:176-264V
Output
DC:24V
Frequency
50/60Hz
Body Details
Material
Metal
Capabilities
IP Rating
IP20
On/Off cycles
>15000
Working conditions
-35°C to +55°C

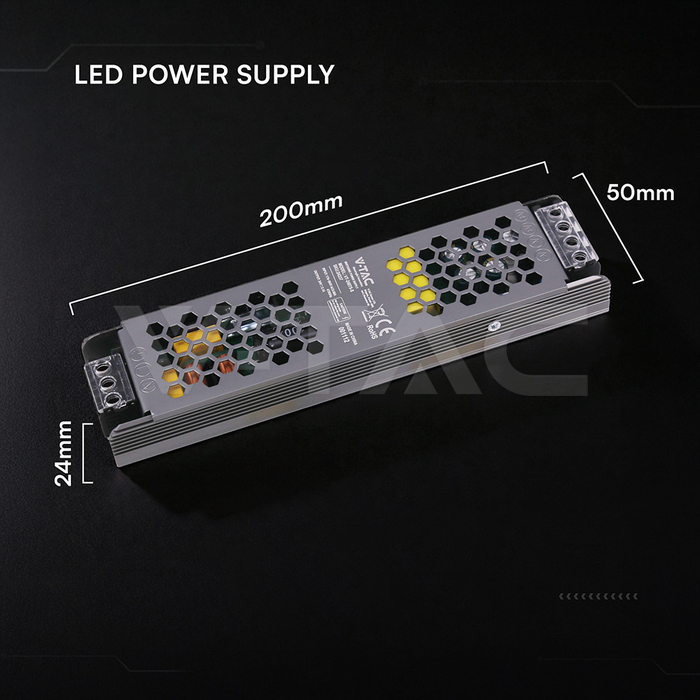

Dimensions
Size
200x50x24mm
Product Data
Order code
24237
Product code
VT-24075-S
Items per pack
1
Item Weight
0.24
Item Volume
0.00038
Items per box
60
EAN Code
3800170258853
Certificates & Standards
Certification
CE, EMC, ROHS
Additional
Release Date
28.02.26
Manufacturer
V-TAC
Warranty
2 Years
