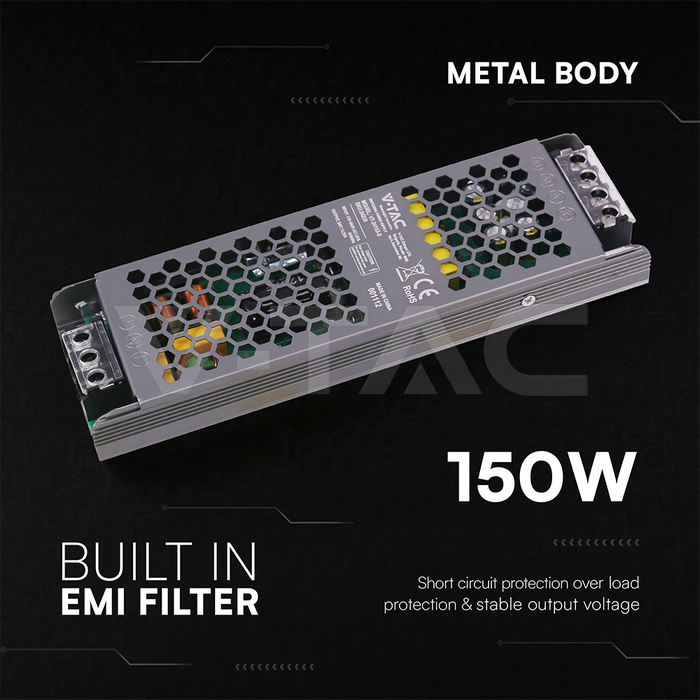

SLIM Power Supply 150W 24V 6.25A IP20

SKU: 24239 | VT: VT-24152-S
24239-2
24239-3
24239-4

Downloads
Manual
PPWR Declaration of Conformity
Specifications
General Information
Lifespan
20 000 hrs
Electrical Data
Wattage
150W
Current
6.25A
Voltage
AC:176-264V
Output

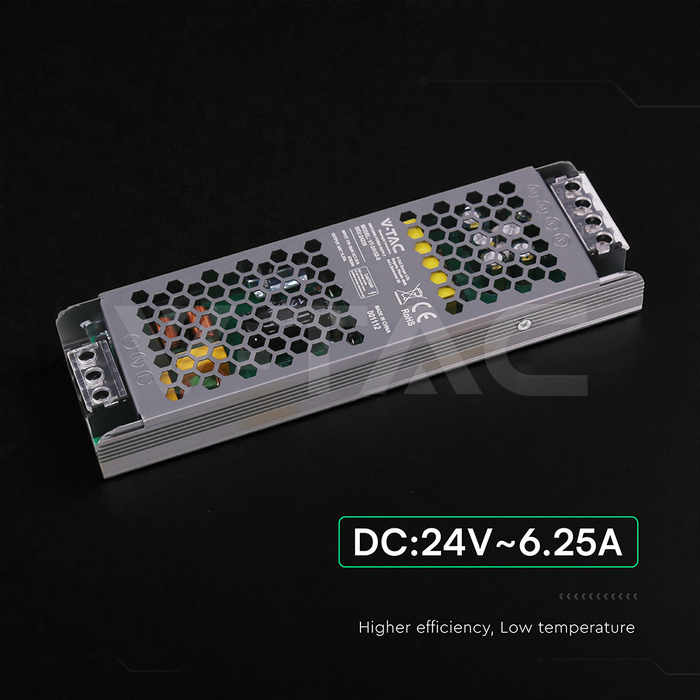

DC:24V
Frequency
50/60Hz
Body Details
Material
Metal
Capabilities
IP Rating
IP20
On/Off cycles
>15000
Working conditions
-35°C to +55°C
Dimensions
Size

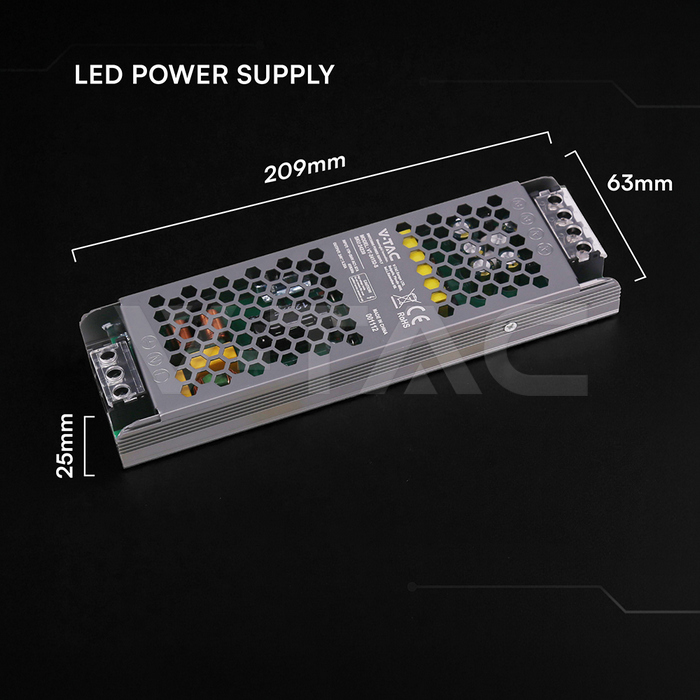

209x63x25mm
Product Data
Order code
24239
Product code
VT-24152-S
Items per pack
1
Item Weight
0.33
Item Volume
0.000524
Items per box
50
EAN Code
3800170258877
Certificates & Standards
Certification
CE, EMC, ROHS
Additional
Release Date
28.02.26
Manufacturer
V-TAC
Warranty
2 Years
