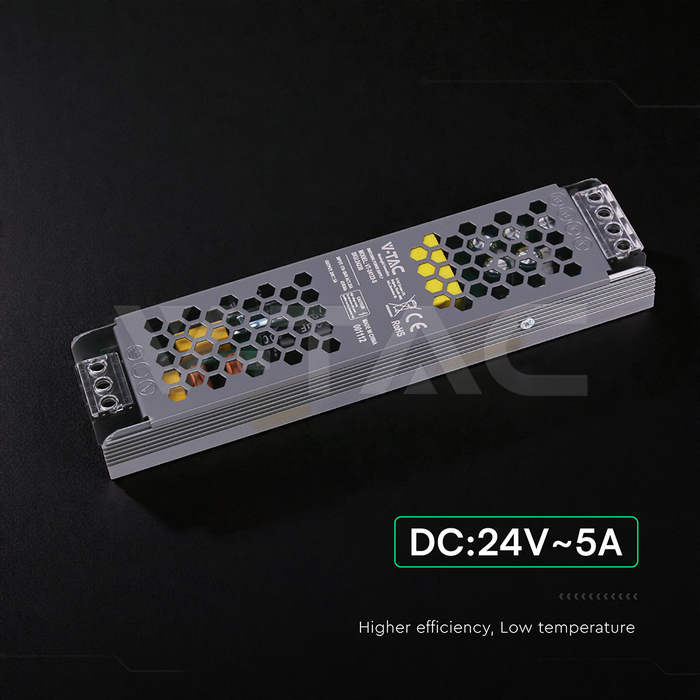

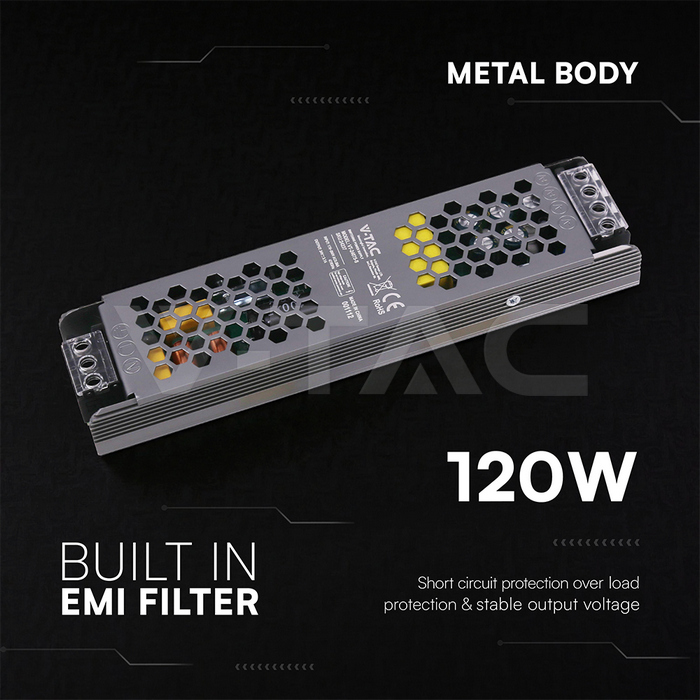

SLIM Power Supply 120W 24V 5A IP20

SKU: 24238 | VT: VT-24122-S
24238-2
24238-3
24238-4

Downloads
Manual
PPWR Declaration of Conformity
Specifications
General Information
Lifespan
20 000 hrs
Electrical Data
Wattage
120W
Current
5A
Voltage
AC:176-264V
Output
DC:24V
Frequency
50/60Hz
Body Details
Material
Metal
Capabilities
IP Rating
IP20
On/Off cycles
>15000
Working conditions
-35°C to +55°C
Dimensions
Size

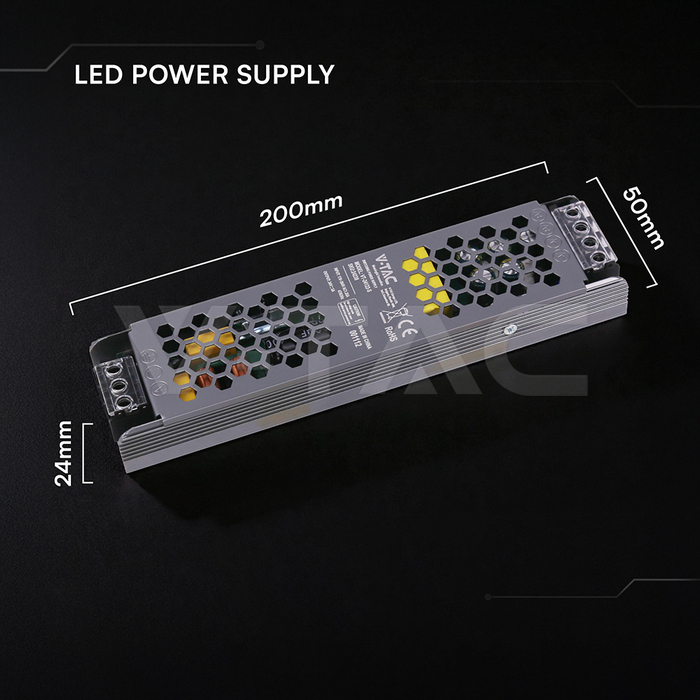

200x50x24mm
Product Data
Order code
24238
Product code
VT-24122-S
Items per pack
1
Item Weight
0.24
Item Volume
0.000379
Items per box
60
EAN Code
3800170258860
Certificates & Standards
Certification
CE, EMC, ROHS
Additional
Release Date
28.02.26
Manufacturer
V-TAC
Warranty
2 Years
