22W LED Mini Panel CREE Chip Recessed 3in1 Round

SKU: 2164236 | VT: VT-2207CCT
2164236-2
2164236-3
2164236-4
2164236-5
2164236-6
2164236-7
2164236-8
2164236-9

Downloads
Product Information Sheet
Manual
Specifications
General Information

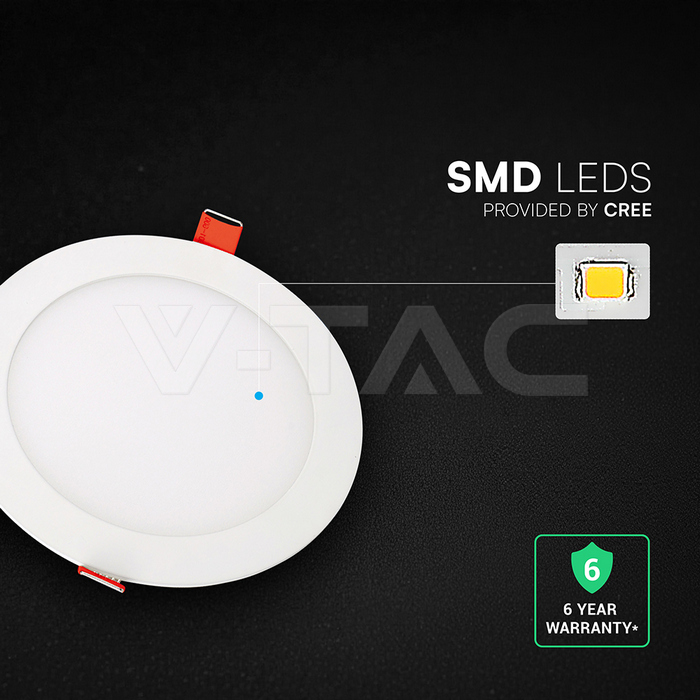

LED Chip
SMD CREE
Lifespan
30,000 Hours
Electrical Data
Wattage
22W
Voltage
AC:220-240V
Frequency
50/60Hz
Power Factor
>0.9
Technical Data

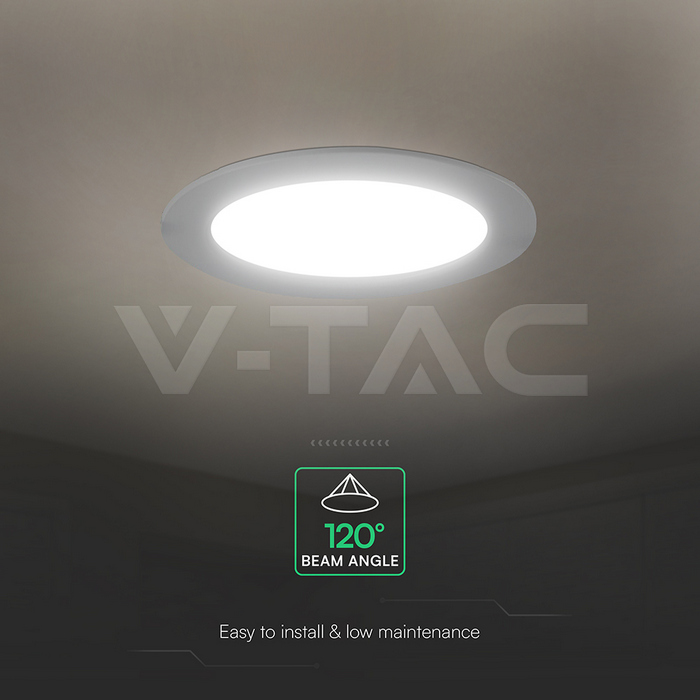

Beam angle
120°

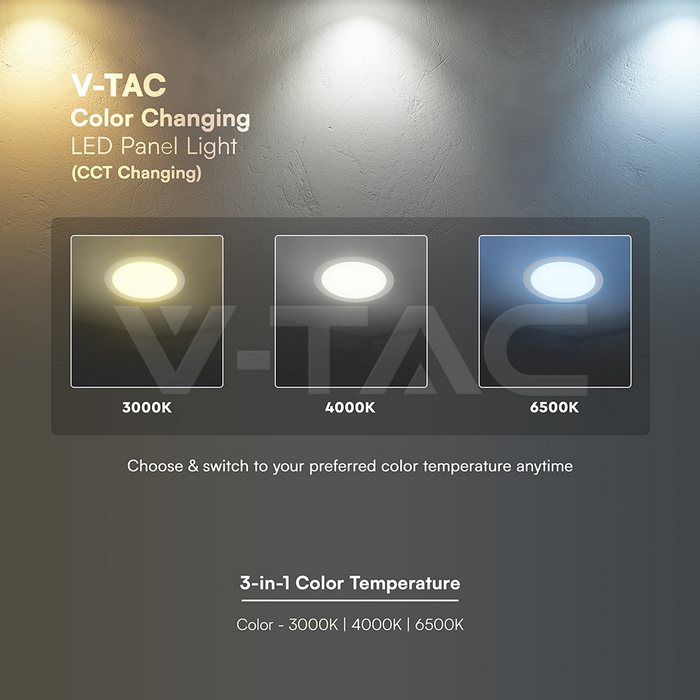

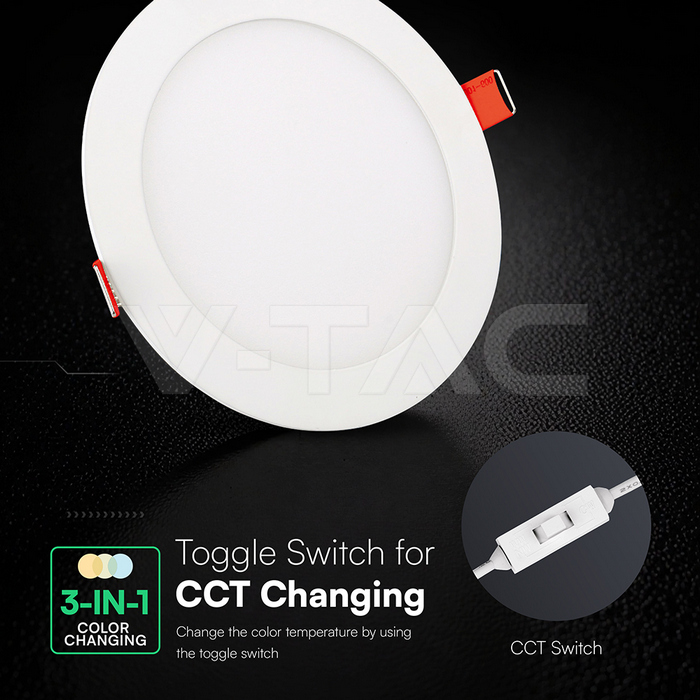

Light color
3 in 1
Luminous flux (lm)
1900 lm
Color Rendering Index CRI
>80
Body Details
Body color
White
Material
Aluminium
Shape
Round
Capabilities
IP Rating
IP20
IK Rating
IK06
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
On/Off cycles
>15000
Working conditions
-20°C to +40°C

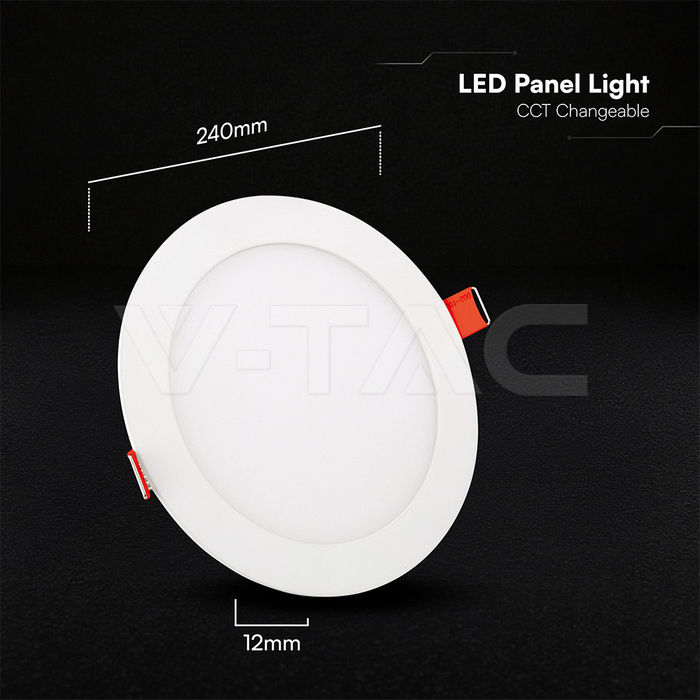

Dimensions
Size
240x12mm
Product Data
Order code
2164236
Product code
VT-2207CCT
Items per pack
1
Item Weight
0.57
Item Volume
0.002621
Items per box
20
EAN Code
3800170263994
Certificates & Standards
Certification
CE, EMC, ROHS
Energy efficiency class
G
Additional
Release Date
22.09.26
Manufacturer
V-TAC
Warranty
6 Years
Energy Class Graphics
Energy Class
