12W LED CREE CHIP Backlit Surface Mounted Panel 3in1 Round

SKU: 78736 | VT: VT-60012CCT

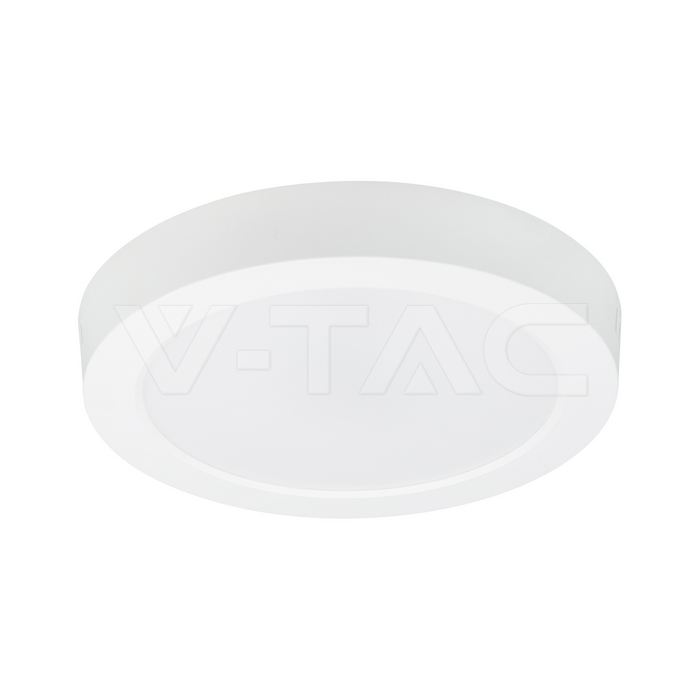

78736-a

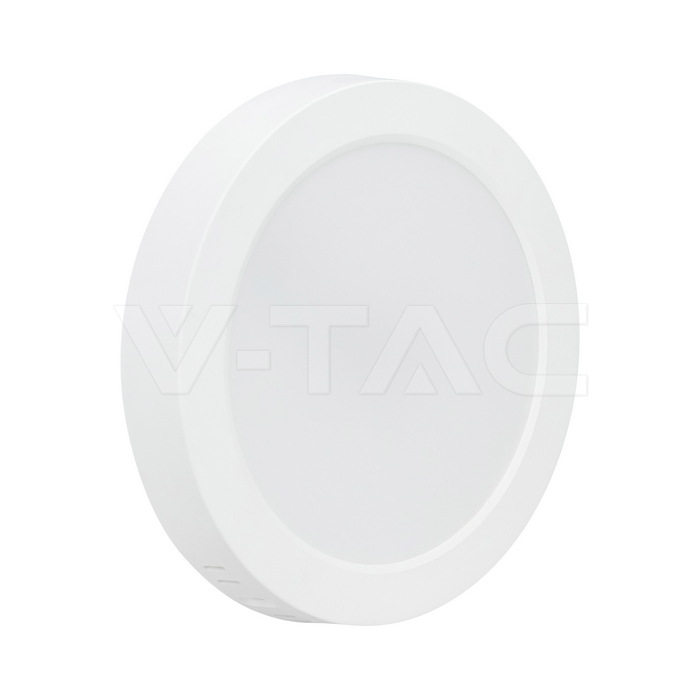

78736-b

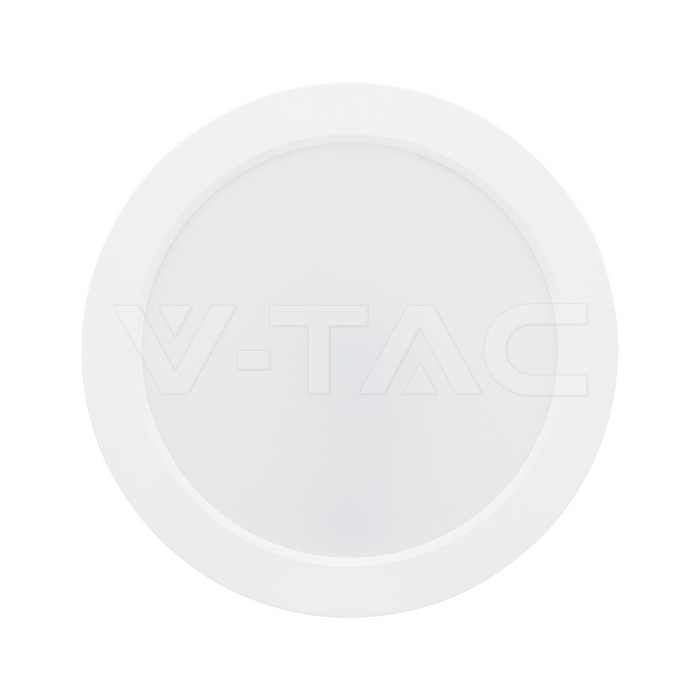

78736-c
78736-2
78736-3
78736-4
78736-5
78736-6
78736-7
78736-8
78736-9

Product benefits

  • Ultra Slim, Contemporary & Elegant Design
  • Higher Light Transmission Rate
  • Exterior shell, cannot be easily damaged
  • No infrared, does not attract flies

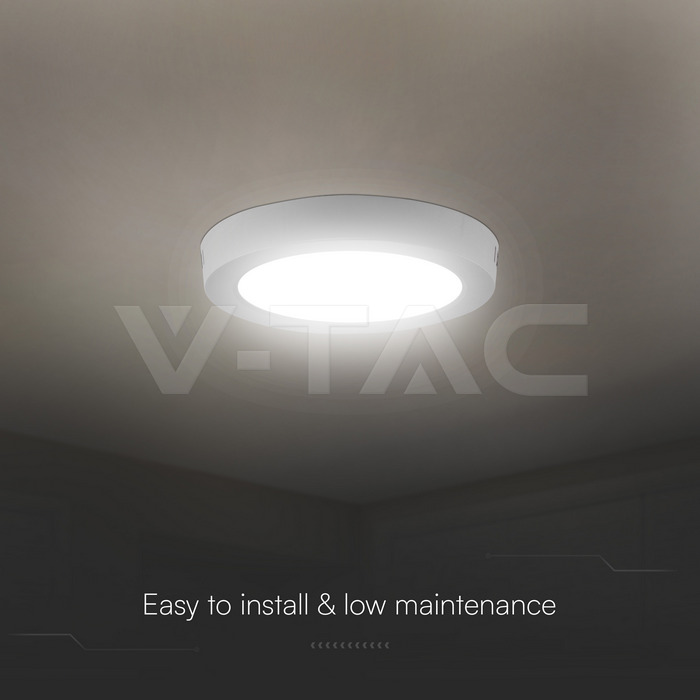

  • Easy to install
  • No Lead or Mercury content
  • Environment friendly
  • Dimmable options available in selected models

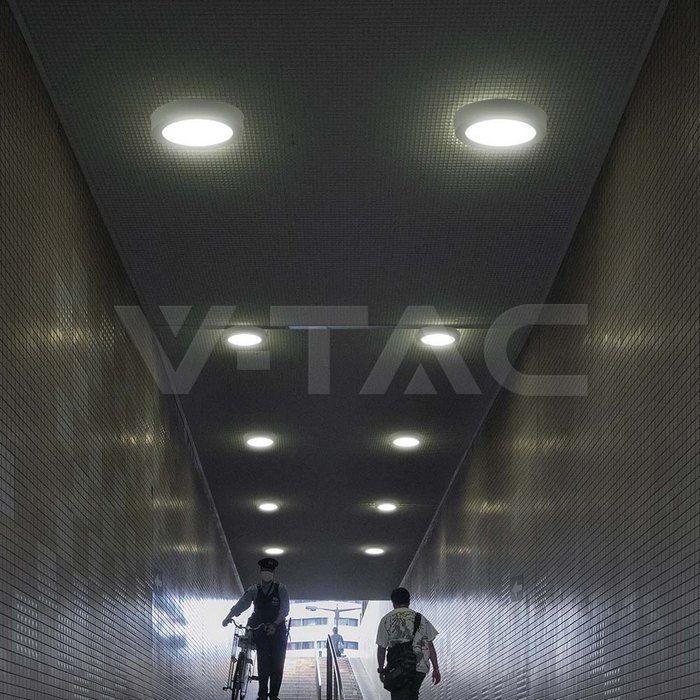

Applications

  • Office Lighting
  • Conference Halls
  • Hospitals
  • Hotels
  • Shopping Malls
  • Showroom and lobby cabin etc.

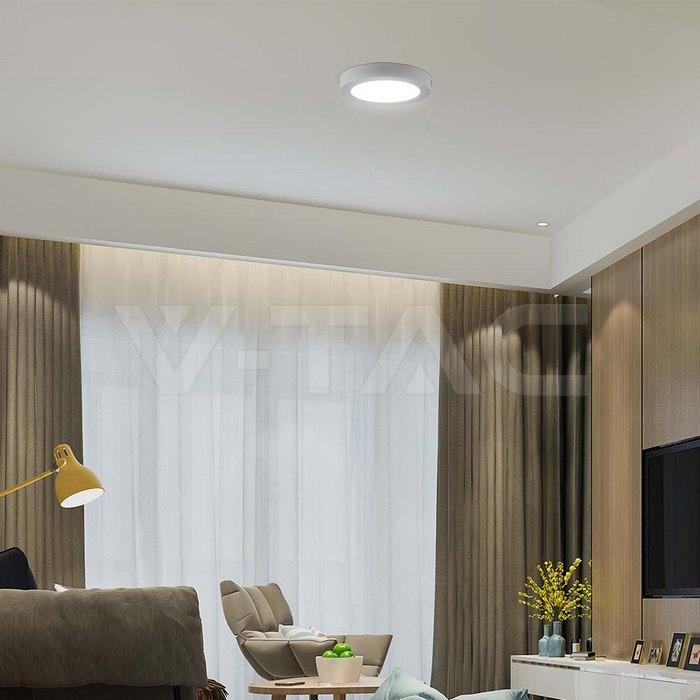

    • Kitchen and Domestic Lighting
Downloads
Product Information Sheet
Manual
PPWR Declaration of Conformity
Specifications
General Information

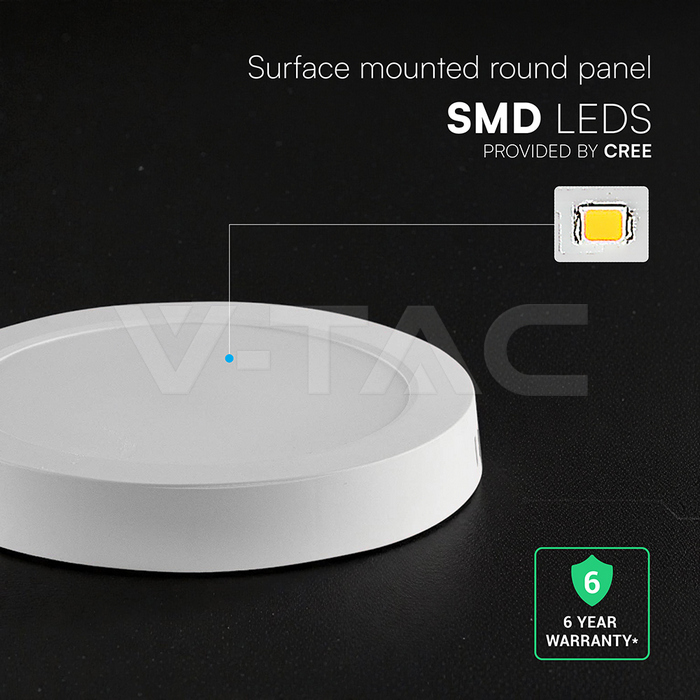

LED Chip
SMD
Lifespan
30,000 Hours
Electrical Data
Wattage
12W
Voltage
AC:220-240V
Frequency
50/60Hz
Technical Data
Luminous efficiency (lm/W)
110 lm/W
Beam angle
120°

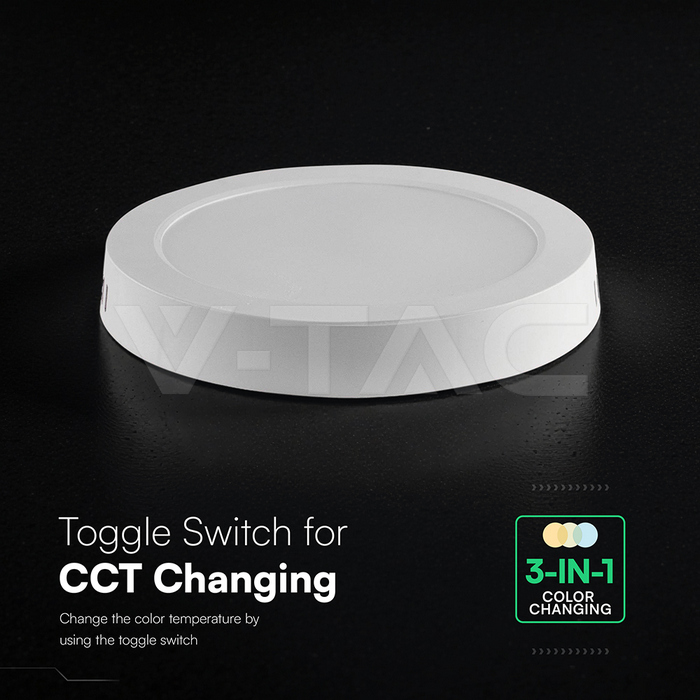

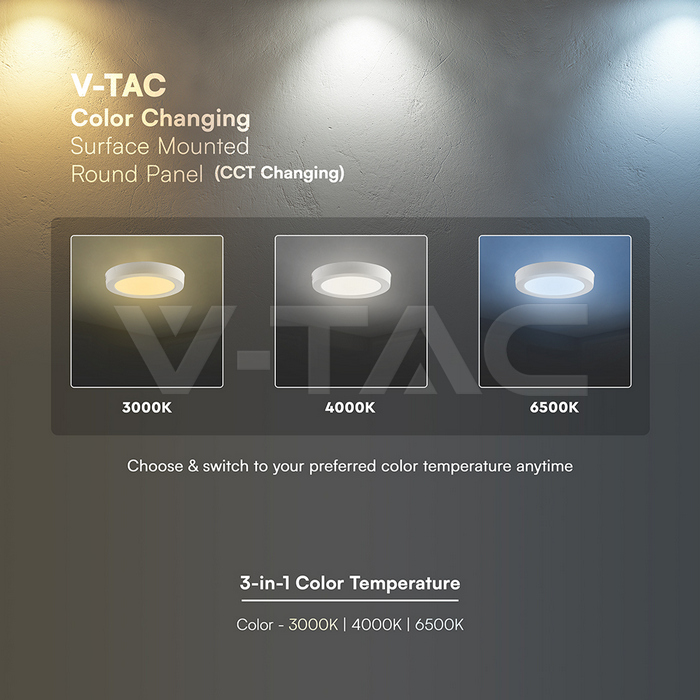

Light color
3 in 1
Luminous flux (lm)
1320 lm
Color Rendering Index CRI
>80
Body Details
Type
Surface
Body color
White
Material
Plastic
Shape
Round
Capabilities
IP Rating
IP20
Starting Time 100% ON
0.001 sec (instant on)
On/Off cycles
>15000
Working conditions
-20°C to +45°C
Color stability
<6
Dimensions

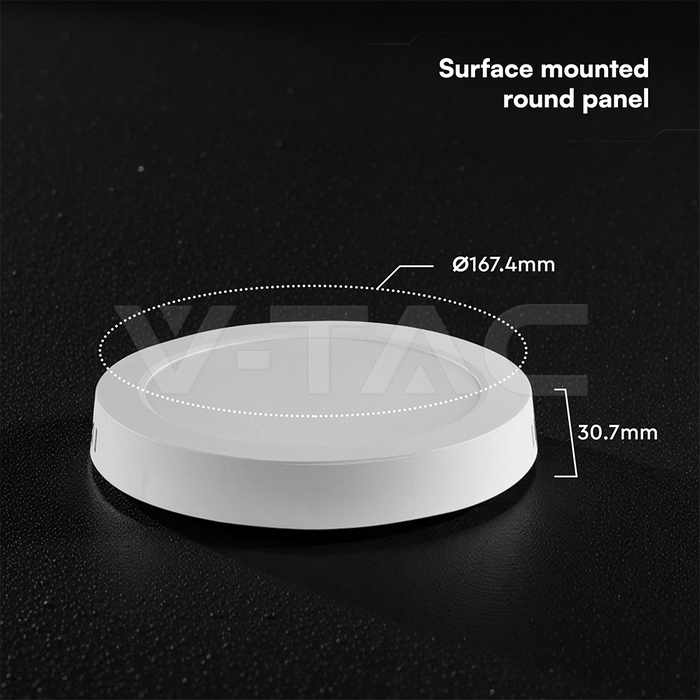

Size
167.4x30.7 mm
Product Data
Order code
78736
Product code
VT-60012CCT
Items per pack
1
Item Weight
0.2
Item Volume
0.001248
Items per box
60
EAN Code
3800170256866
Certificates & Standards
Certification
CE, EMC, ROHS
Energy efficiency class
E
Additional
Release Date
01.04.26
Manufacturer
V-TAC
Warranty
6 Years
