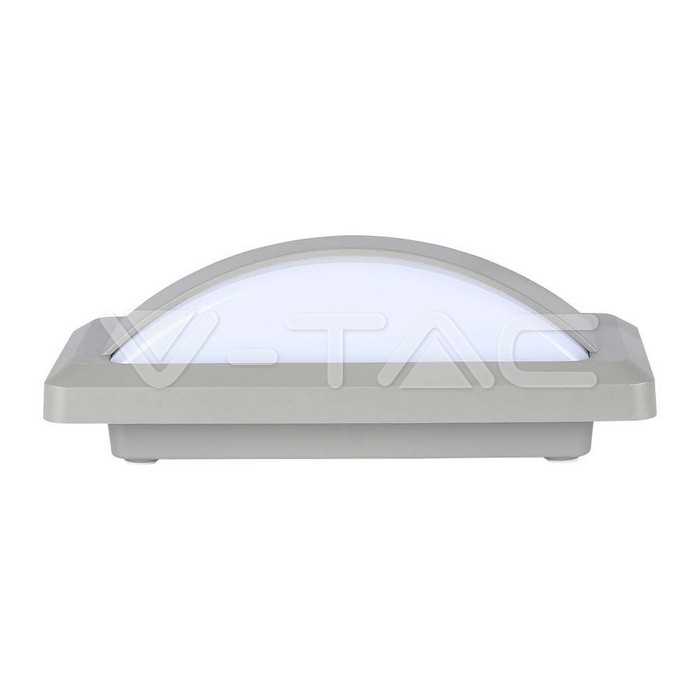

12W LED Bulkhead With Softlight 4000K Grey Body IP65

SKU: 218246 | VT: VT-8058
218245-2
218245-3
218245-4
218245-5
218245-6
218245-7
218245-8

Downloads
Product Information Sheet
Declaration of Conformity
RoHS Report
ЕМС Report
EMC License
LVD License
RoHS License
LVD Report
Specifications
General Information

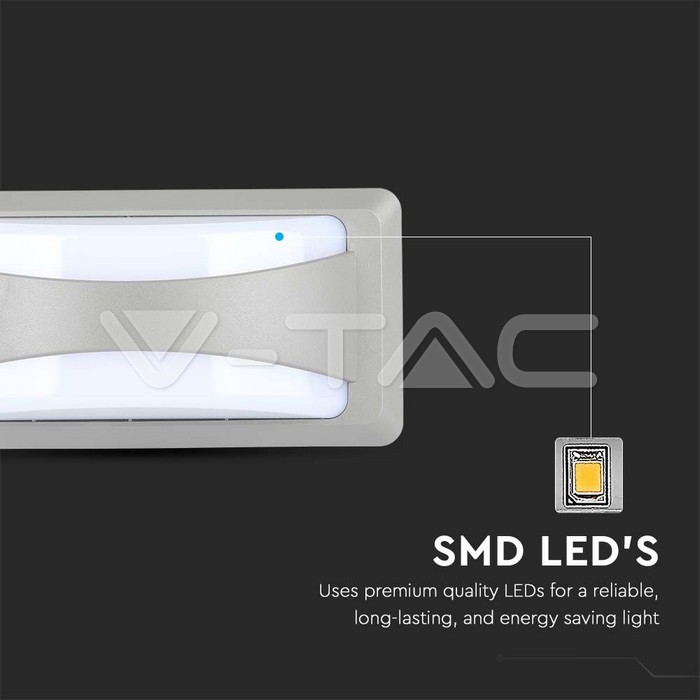

LED Chip
SMD
Lifespan
20,000 hrs
Electrical Data
Wattage
12W
Voltage
AC:220-240V
Frequency
50/60Hz
Technical Data
Light color
Natural White
Color Temperature
4000K
Luminous flux (lm)
1160 lm
Color Rendering Index CRI
>80
Beam angle
130°
Luminous efficiency (lm/W)
100 lm/W
Body Details
Material
PC
Body color
Grey
Capabilities

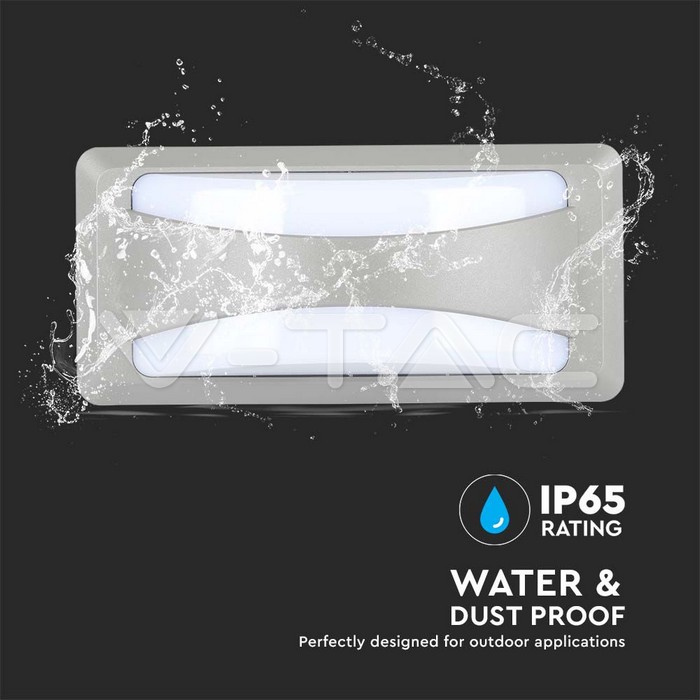

IP rate
IP65
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
On/Off cycles
>15000
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
Dimensions

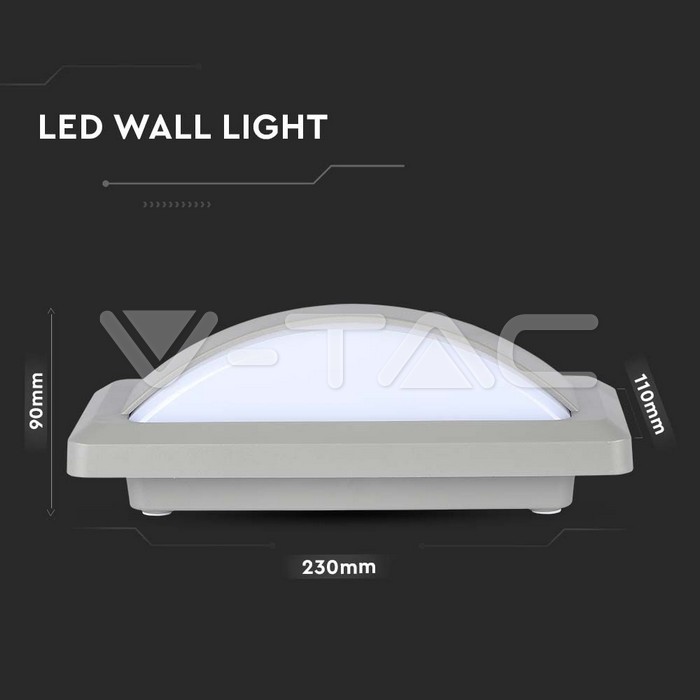

Size
230x110x76 mm
Product Data
Order code
218246
Product code
VT-8058
Items per pack
1
Item Weight
0,5
Item Volume
0,002635
Items per box
20
EAN Code
3800157678971
Certificates & Standards
Energy efficiency class
F
Certification
CE, EMC, ROHS
Additional
Release Date
19.09.2022
Brand
V-TAC
Warranty
2 yrs
Energy Class Graphics
Energy Class
