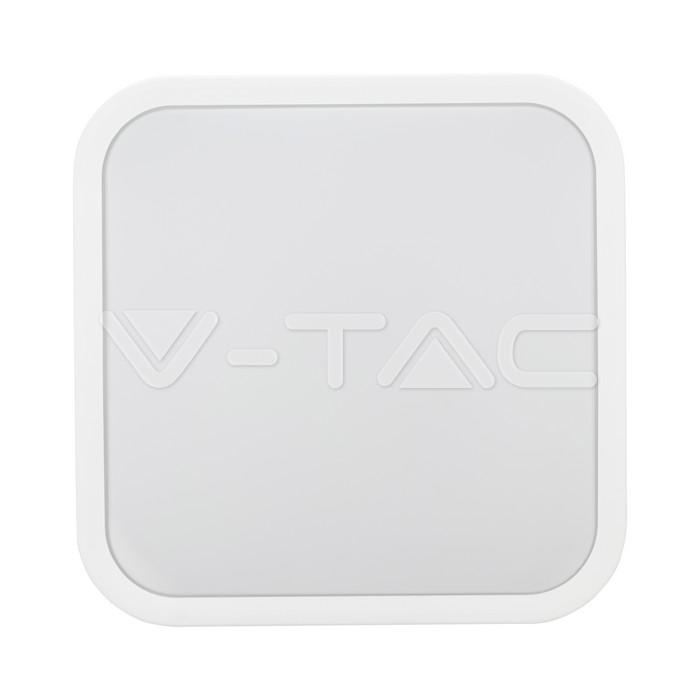

48W LED Dome Light Square White Frame 4000K IP44

SKU: 76311 | VT: VT-8630
76301-2
76301-3
76301-4
76301-5

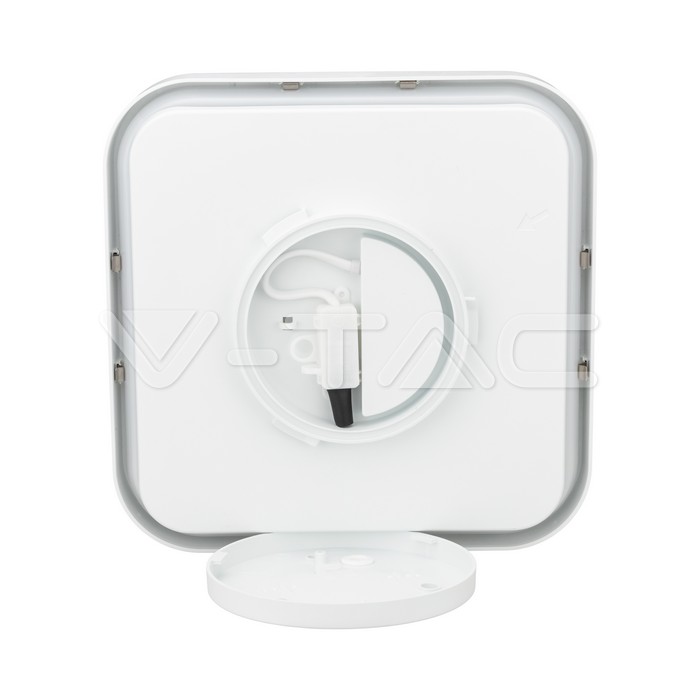

76301-6
76301-7
76301-8
76301-9
76301-10
76301-11
76301-12

Downloads
Product Information Sheet
Manual
Declaration of Conformity
ЕМС Report
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
PPWR Declaration of Conformity
Specifications
General Information

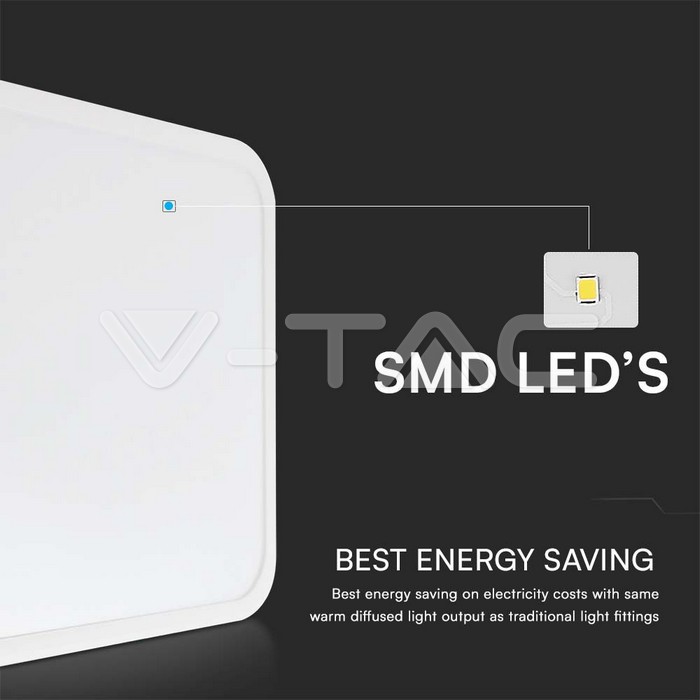

LED Chip
SMD
Lifespan
20,000 hrs
Electrical Data
Wattage
48W
Voltage
220-240V
Frequency
50/60Hz
Technical Data
Luminous efficiency (lm/W)
107 lm/W
Light color
Natural White
Color Temperature
4000K
Luminous flux (lm)
5160 lm
Color Rendering Index CRI
>80
Beam angle
360°

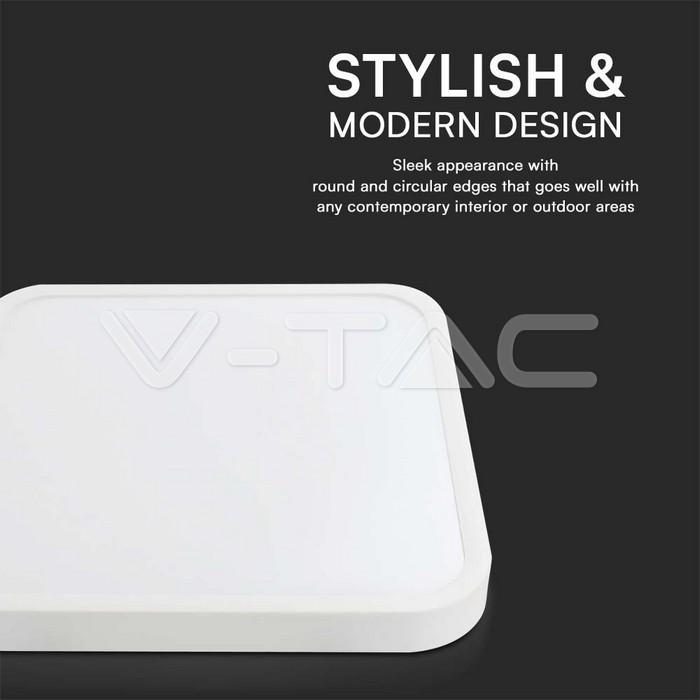

Body Details
Material
PP+PMMA
Shape
Square
Body color
White
Capabilities
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
On/Off cycles
>15000
Working conditions
-20°C to +45°C
IP Rating
IP44

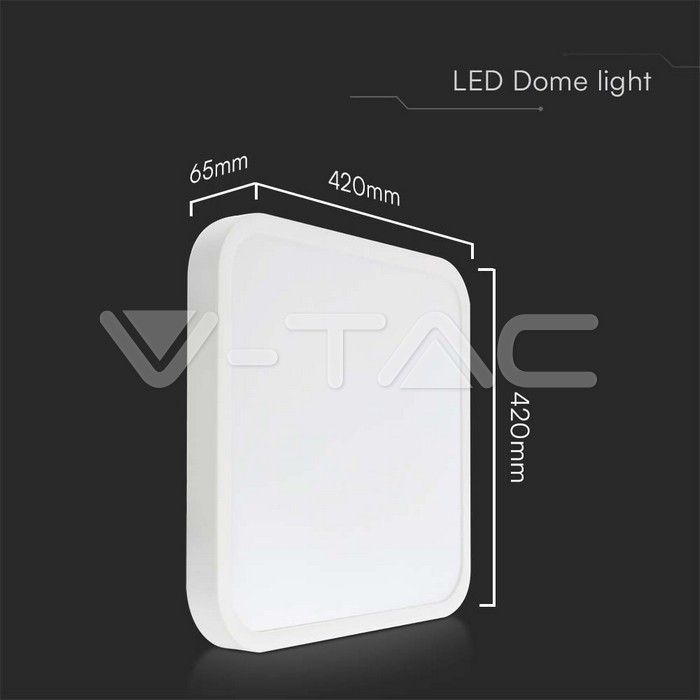

Dimensions
Size
420x420x65mm
Product Data
Order code
76311
Product code
VT-8630
Items per pack
1
Item Weight
1.67
Item Volume
0.01584
Items per box
5
EAN Code
3800170211827
Certificates & Standards
Certification
CE, EMC
Energy efficiency class
F
Additional
Release Date
10.11.2023
Warranty
2 Years
Energy Class Graphics
Energy Class
Manufacturer
V-TAC
