REAL PIR Presence Sensor Recessed Mount White Body

SKU: 24112 | VT: VT-81005
24112-2
24112-3
24112-4
24112-5
24112-6
24112-7

Downloads
Manual
PPWR Declaration of Conformity
Specifications
Electrical Data
Voltage
AC:220-240V
Frequency
50/60Hz
Body Details
Body color
White
Material
PC
Capabilities
IP Rating
IP54
Sensor Type
PIR
Detection Distance
2-6m(diameter)adjustable
Detection Motion Speed
0.6-1.5m/s

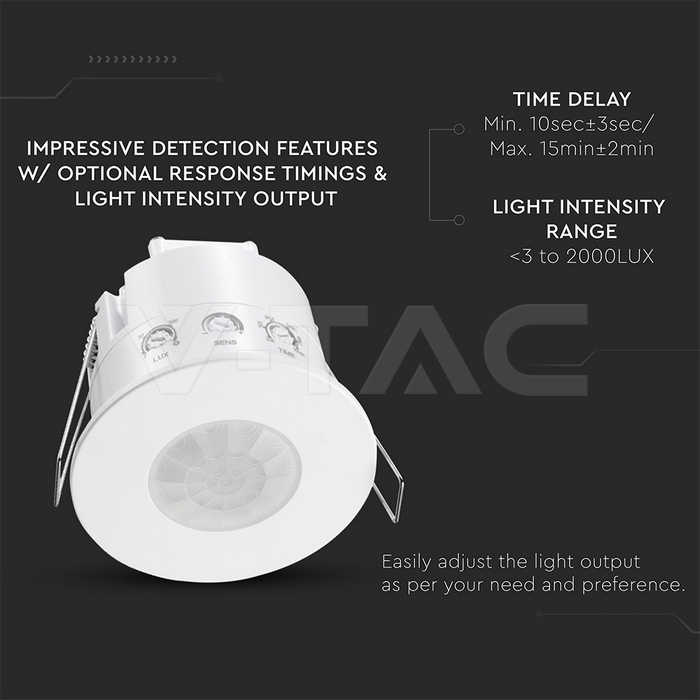

Time Delay
Min 10sec±3sec, Max 15min±2min

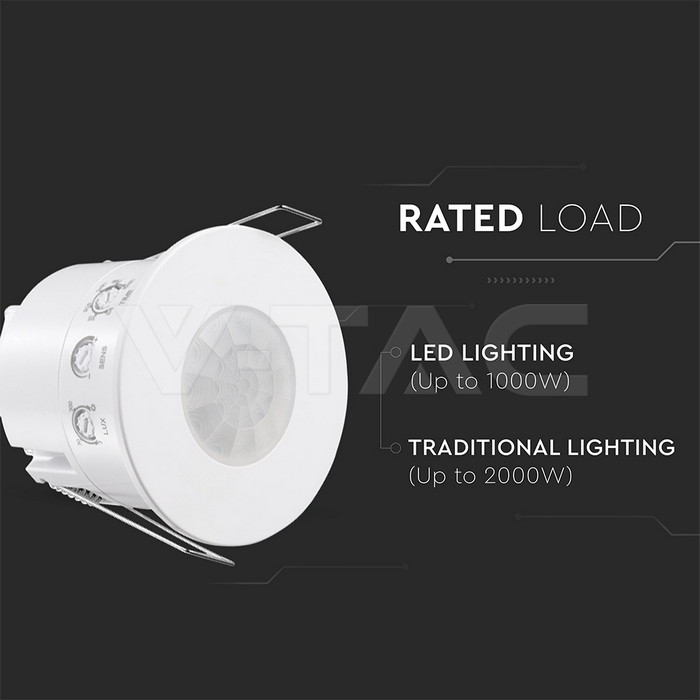

Rated Load
Max 1000W LED
Ambient Light
<3-2000LUX(adjustable)
Dimensions

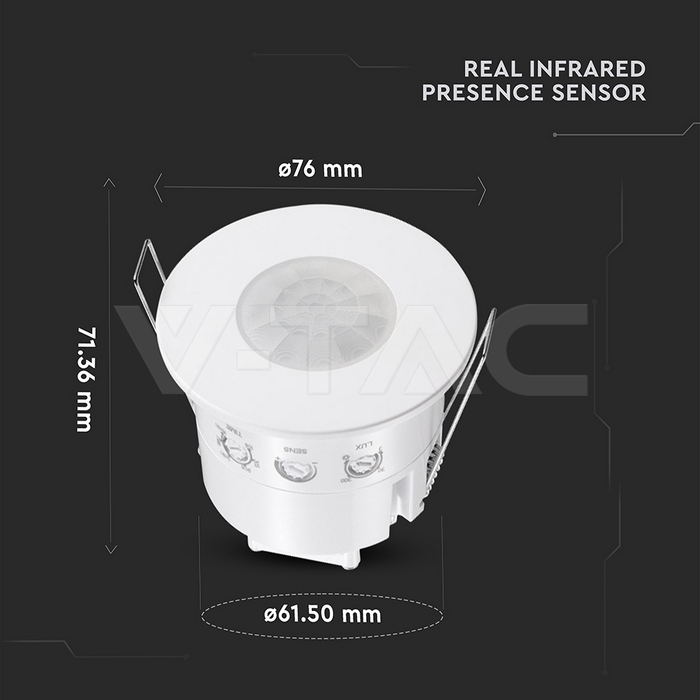

Size
76x71.4mm
Mounting Size
63-66mm
Product Data
Order code
24112
Product code
VT-81005
Items per pack
1
Item Weight
0.14
Item Volume
0.000777
Items per box
50
EAN Code
3800170253933
Certificates & Standards
Certification
CE, EMC, ROHS
Additional
Release Date
03.10.25
Warranty
5 Years
Manufacturer
V-TAC
