PIR Wall Sensor Moving Head Black

SKU: 5089 | VT: VT-8028
5089-2
5089-3
5089-4
5089-5
5089-6
5089-7
5089-8
5089-9

Product benefits

  • Power saving
  • Available for indoor and outdoor purposes
  • Compatible with most of our models
  • Proven quality from reliable suppliers
  • Wide range of models to choose from

Applications

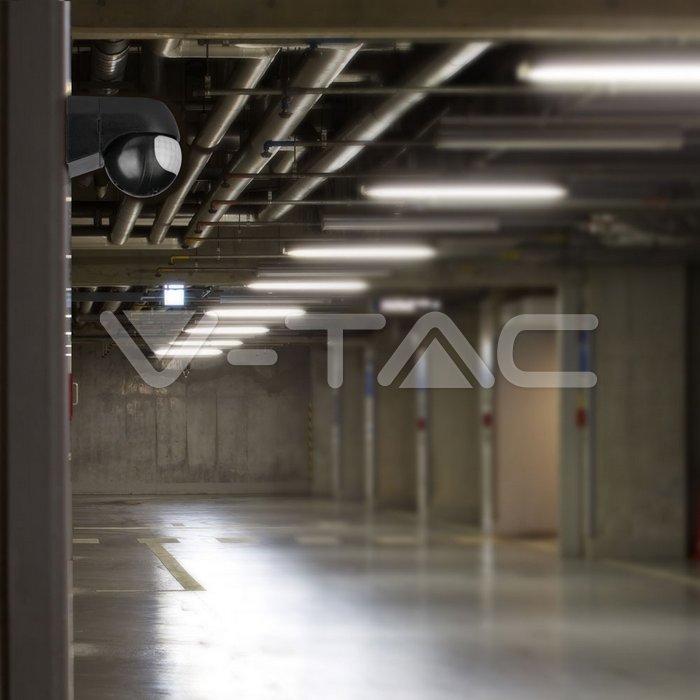

  • Outdoor areas like parking, garages, gardens and yards
  • Indoor areas like walkways, lobbies and staircases
Downloads
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
Declaration of Conformity
Manual
PPWR Declaration of Conformity
Specifications
General Information
Lifespan
>20 000 hrs
Electrical Data
Voltage
AC: 220-240V
Frequency
50/60Hz
Body Details
Material
Plastic clad Aluminium
Capabilities

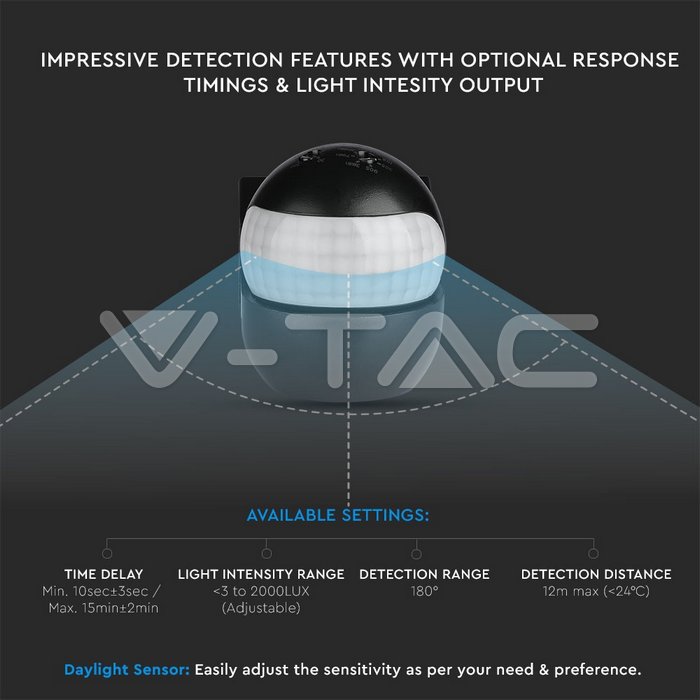

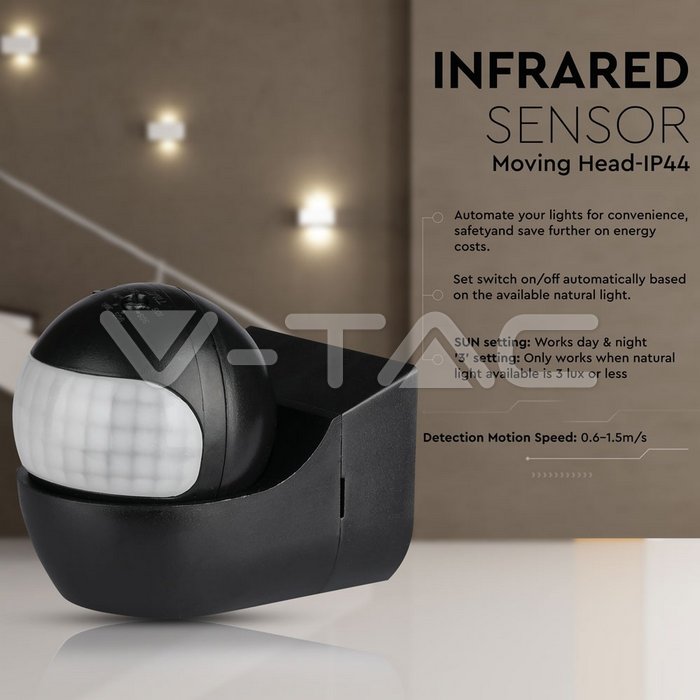

Sensor Type
Infrared
Detection Range
180’D
Detection Distance
Max.12m (<24º C)
Detection Motion Speed
0.6 - 1.5m/s
Time Delay
Min. 10sec±3sec. Max. 10min±2min

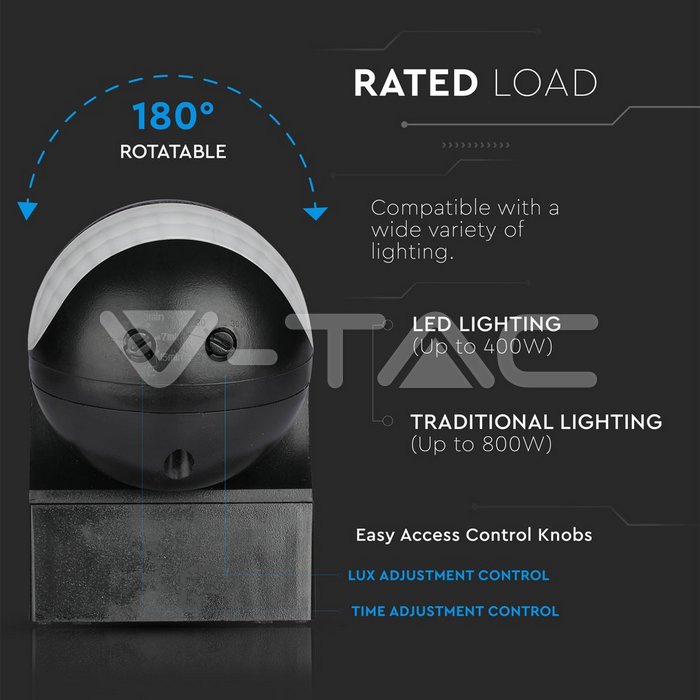

Rated Load
Max.800W
Ambient Light
<3-2000LUX Adjustable
Sensor
Yes
IP Rating
IP44
Dimensions
Size
85 x 60 x 85 mm
Product Data
Order code
5089
Product code
VT-8028
Items per pack
1
Item Weight
0,13
Item Volume
0,000408
Items per box
50
EAN Code
3800157609203
Certificates & Standards
Certification
CE, EMC, ROHS
Additional
Warranty
2 years
Manufacturer
V-TAC
