PIR Wall Sensor 180º/360º White Body IP44

SKU: 24111 | VT: VT-81008
24111-2
24111-3
24111-4
24111-5
24111-6
24111-7

Downloads
Manual
PPWR Declaration of Conformity
Specifications
Electrical Data
Voltage
AC:220-240V
Frequency
50/60Hz
Body Details
Body color
White
Material
PC
Capabilities
IP Rating
IP65
Sensor Type
PIR

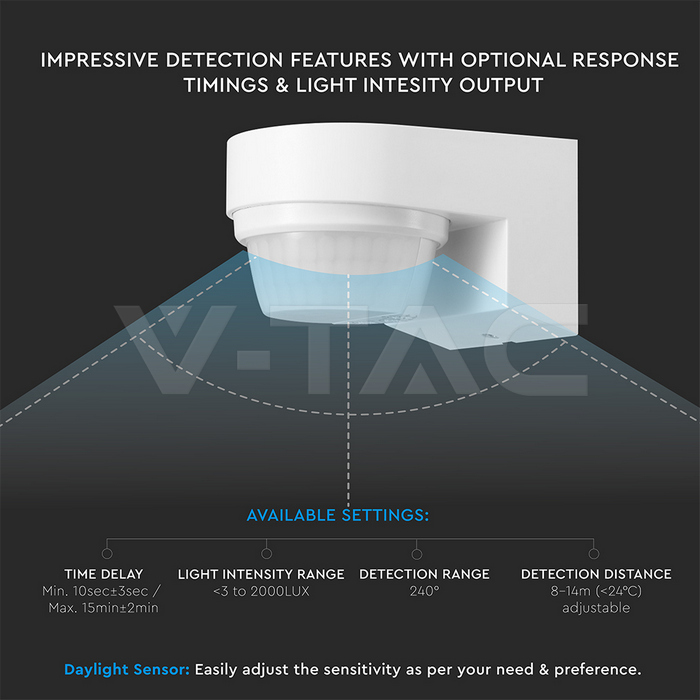

Detection Distance
8-14m(<24°C)adjustable
Detection Motion Speed
0.6-1.5m/s
Time Delay
Min 10sec±3sec, Max 15min±2min
Rated Load
Max 1000W LED
Ambient Light
<3-2000LUX(adjustable)
Dimensions
Size
100.3x75x62mm
Product Data
Order code
24111
Product code
VT-81008
Items per pack
1
Item Weight
0.21
Item Volume
0.000808
Items per box
50
EAN Code
3800170253926
Certificates & Standards
Certification
CE, EMC, ROHS
Additional
Release Date
03.10.25
Warranty
5 Years
Manufacturer
V-TAC
