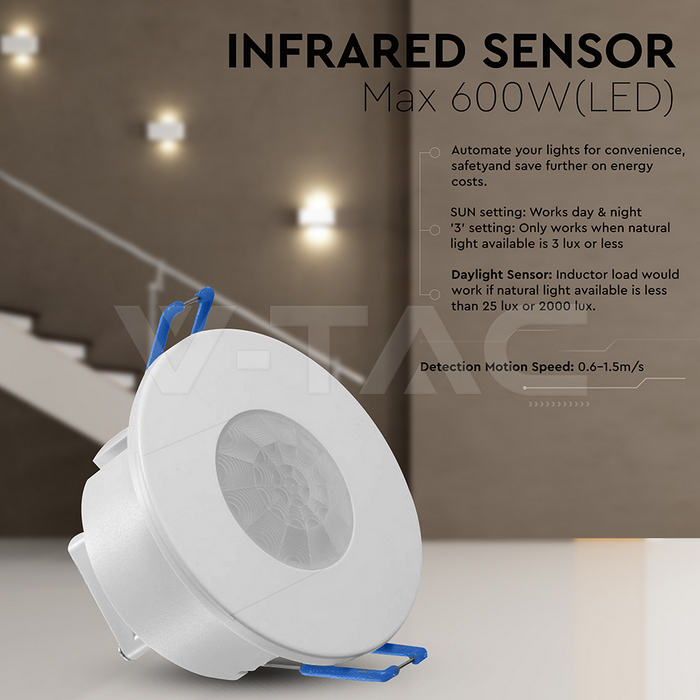

PIR Ceiling Sensor Recessed White Body

SKU: 24108 | VT: VT-81041
24108-2
24108-3
24108-4
24108-5
24108-6
24108-7

Downloads
Manual
PPWR Declaration of Conformity
Specifications
Electrical Data
Voltage
AC:220-240V
Frequency
50/60Hz
Body Details
Body color
White
Material
PC
Capabilities
IP Rating
IP20
Sensor Type
PIR
Detection Distance
Max 8m(<24°C)
Detection Motion Speed
0.6-1.5m/s
Time Delay
Min 10sec±3sec, Max 15min±2min
Rated Load
Max 600W LED
Ambient Light
<3-2000LUX(adjustable)

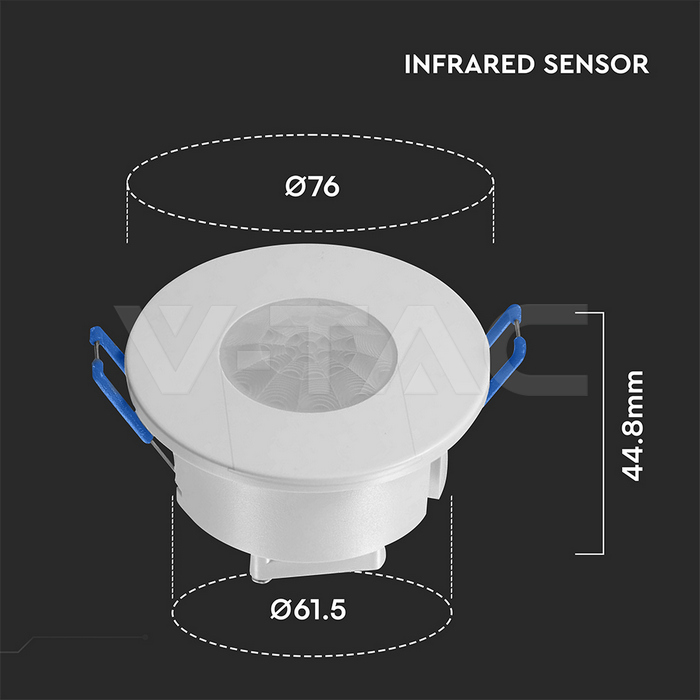

Dimensions
Size
76x44.8mm
Mounting Size
63-66mm
Product Data
Order code
24108
Product code
VT-81041
Items per pack
1
Item Weight
0.1
Item Volume
0.000628
Items per box
50
EAN Code
3800170253896
Certificates & Standards
Certification
CE, EMC, ROHS
Additional
Release Date
03.10.25
Warranty
5 Years
Manufacturer
V-TAC
