LED Strip 5050 60 LEDs 12V IP20 RGB Natural White A++

SKU: 2553 | VT: VT-5050
Replaced with SKU 212553
2547-2
2547-3
2547-4
2547-5
2547-6
2547-7
2547-8

Product benefits

  • LED strip is a low voltage flexible ribbon available in 12V

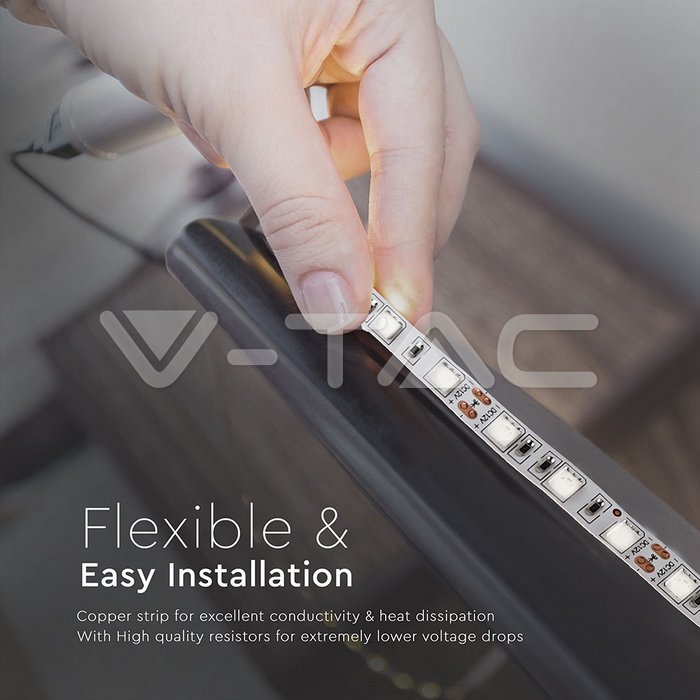

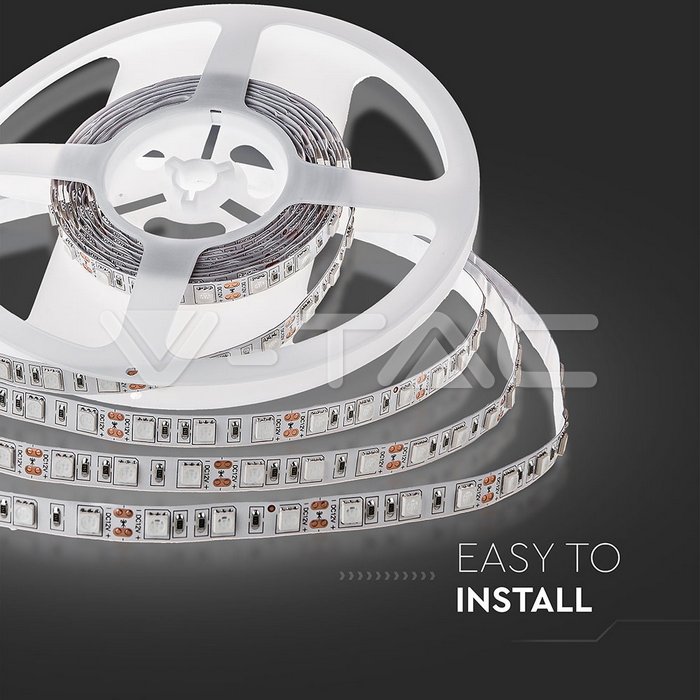

  • Flexible & easy installation
  • Exceptionally low power consumption
  • Multiple visual effects in unending colours and shades
  • Available in different color range from Warm White to RGB
  • IP20 and IP65 Rating options
  • 1 or 1.5 meter rigid bar options available

Applications

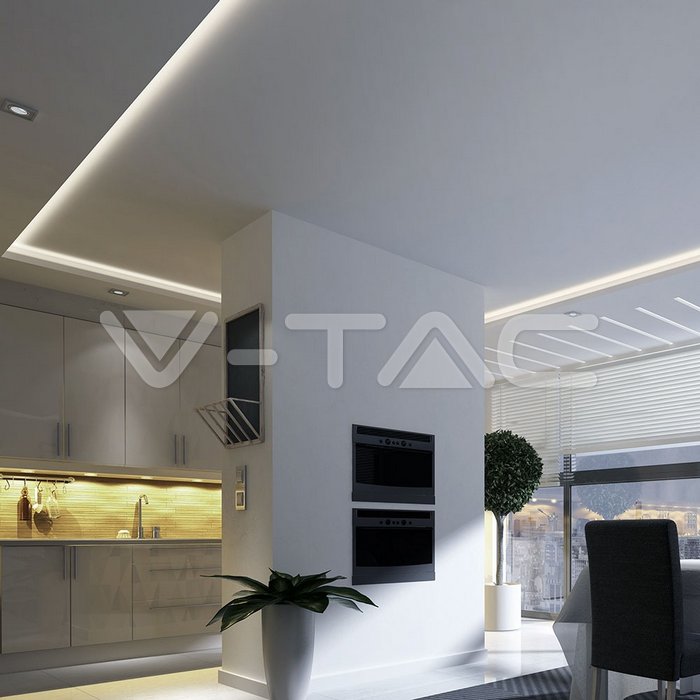

  • Ideal for illuminating Borders, Edges, Cabinets, Bars and any area with limited space for installation
Downloads
EMC License
RoHS License
RoHS Report
ЕМС Report
Manual
Declaration of Conformity
Product Information Sheet
Specifications
General Information
LED Chip
SMD5050
Lifespan
20 000 hrs
Electrical Data
Wattage/m
10.8W
Voltage
DC:12V
Technical Data
Light color
RGB
Luminous flux/m
900 lm
LED Quantity
60 LED/m.
Body Details
Material
PCB
Capabilities

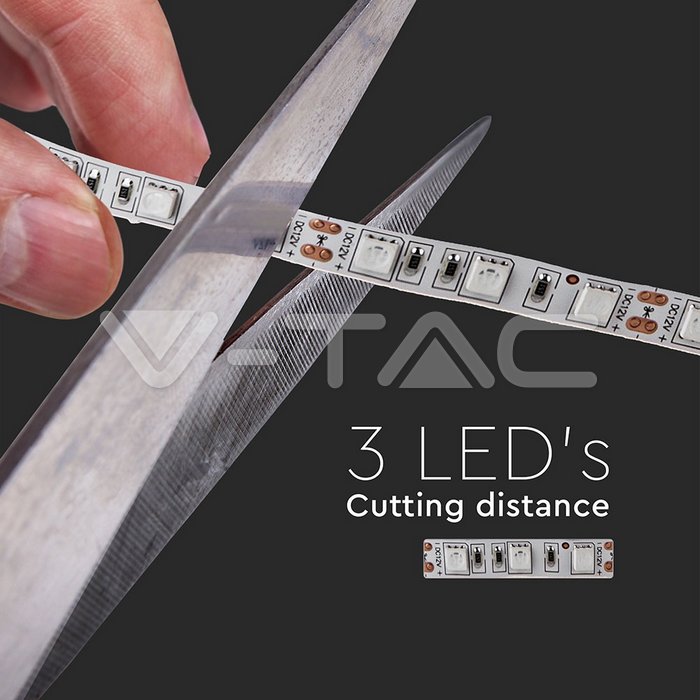

Cut Points
Copper pads spaced every 3 LEDs. Cut only on the given cut line between the copper dots.
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
Luminous intensity, Cd
286.47 Cd Max.
On/Off cycles
15000
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +45°

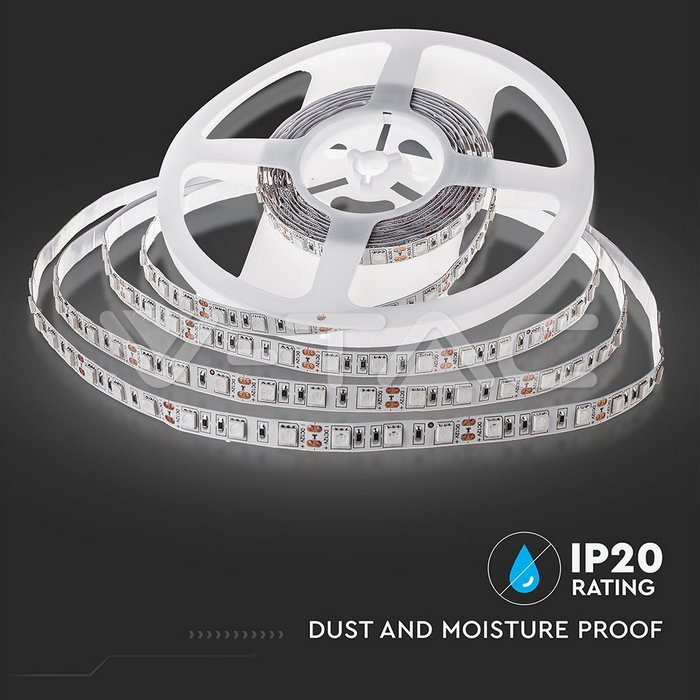

IP Rating
IP20
Dimensions
Width
10 mm
Product Data
Order code
2553
Product code
VT-5050
Items per pack
1 - 5m.
Item Weight
0,124
Item Volume
0,00105
Items per box
400
EAN Code
3800157630313
Certificates & Standards
Energy efficiency class
F
Certification
CE, EMC, ROHS
Additional
Brand
V-TAC
Warranty
2 years
Energy Class Graphics
Energy Class
