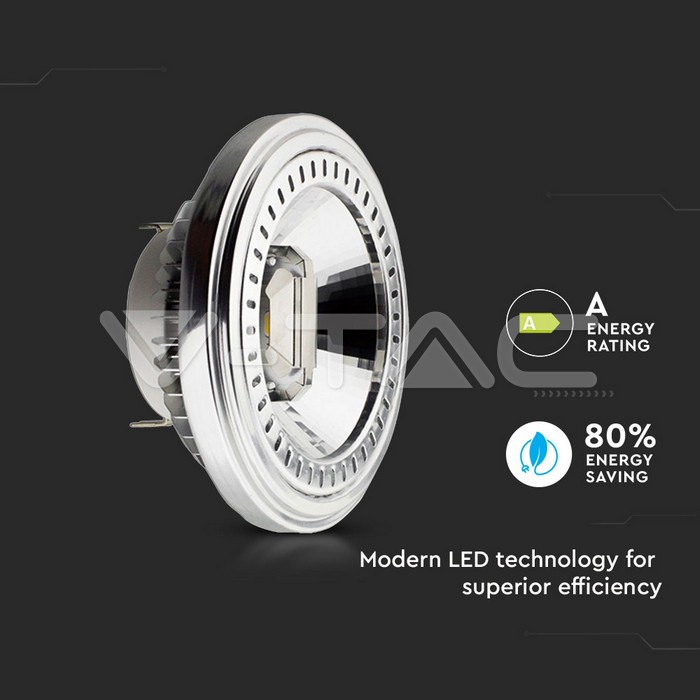

LED Spotlight AR111 15W 12V Beam 40 Sharp Chip White

SKU: 4255 | VT: VT-1110
Replaced with SKU 214255
4257-2
4257-3
4257-4
4257-5

Product benefits

  • Energy consumption – 80% less than standard bulbs
  • Extremely long life
  • No UV and near-IR radiation
  • Instant ON 100 % light, no warm-up time
  • Lower thermal output
  • Direct replacement for conventional incandescent lamps

Applications

  • Commercial & Residential areas
  • Hotels, Bars
  • Exhibition Stands
  • Chandeliers
  • Outdoor applications only in suitable luminaires
Downloads
Technical Specifications
N/A
DEKRA License
N/A
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
Manual
Product Information Sheet
Specifications
General Information
Bulb shape
AR111
LED Chip
COB
Lifespan
>20 000 hrs
Base
Gx53
Electrical Data
Wattage
15W
EQ. Wattage
25W
Voltage
AC: 12V
Frequency
50Hz
Power Factor
>0.9
Technical Data
Light color
White
Color Temperature
6000K
Luminous flux (lm)
950 lm
Color Rendering Index CRI
>80
Body Details
Material
Plastic clad Aluminium
Capabilities
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
Luminous intensity, Cd
2507.1 Cd Max.
On/Off cycles
15000
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
Compatibility
Not compatible with electronic transformers
Lumen maintenance factor at the end of the nominal life
70%
IP Rating
IP20
Dimensions
Height
111 mm
Diameter
63 mm
Mounting Size
Ø86 mm
Product Data
Order code
4255
Product code
VT-1110
Items per pack
1
Item Weight
0,2
Item Volume
0,00169
Items per box
60
EAN Code
3800230628640
Certificates & Standards
Energy efficiency class
G
Certification
CE, EMC, ROHS
Additional
Warranty
2 years
Dimensions Graphics
Dimensions
Energy Class Graphics
Energy Class
Manufacturer
V-TAC
