200W LED Floodlight Black Body 6400K 160 lm/W

SKU: 5923 | VT: VT-49261
5922-2
5922-3
5922-4
5922-5
5922-6
5922-7
5922-8
5922-9
5922-10
5922-11
5922-12

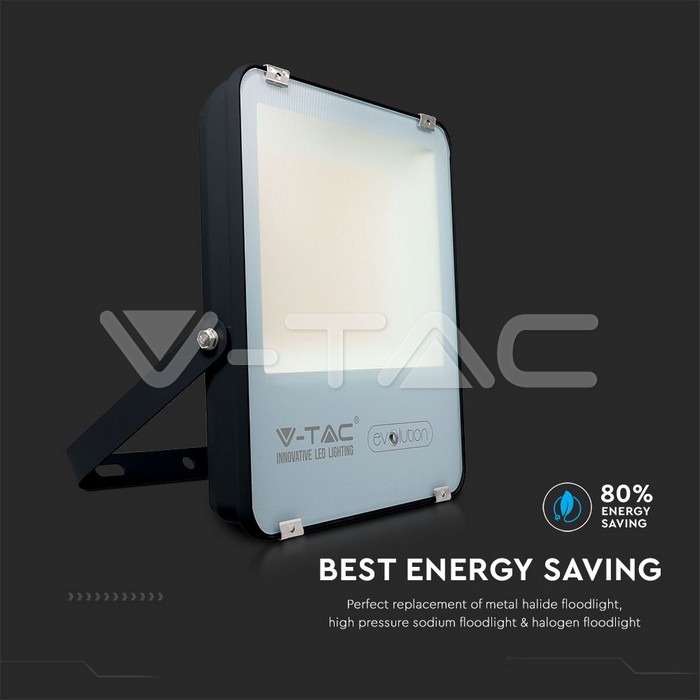

Product benefits

  • White, Natural and Warm White light color options

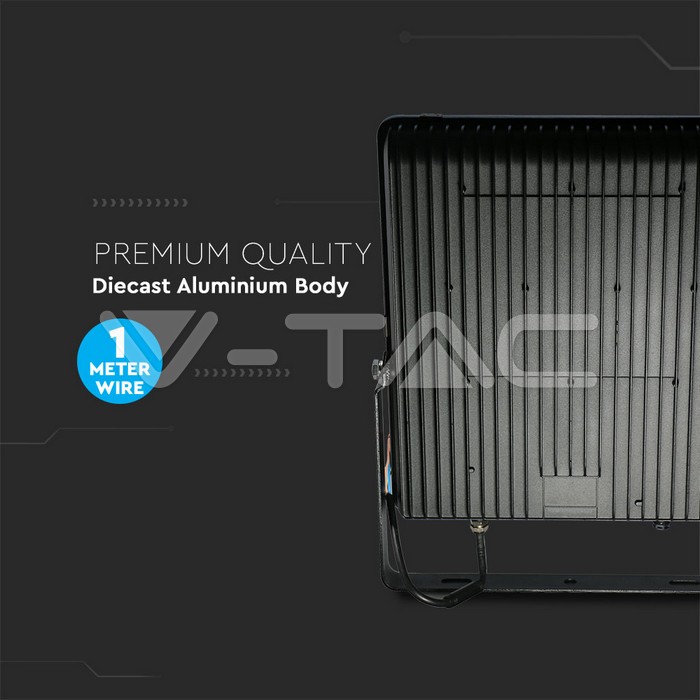

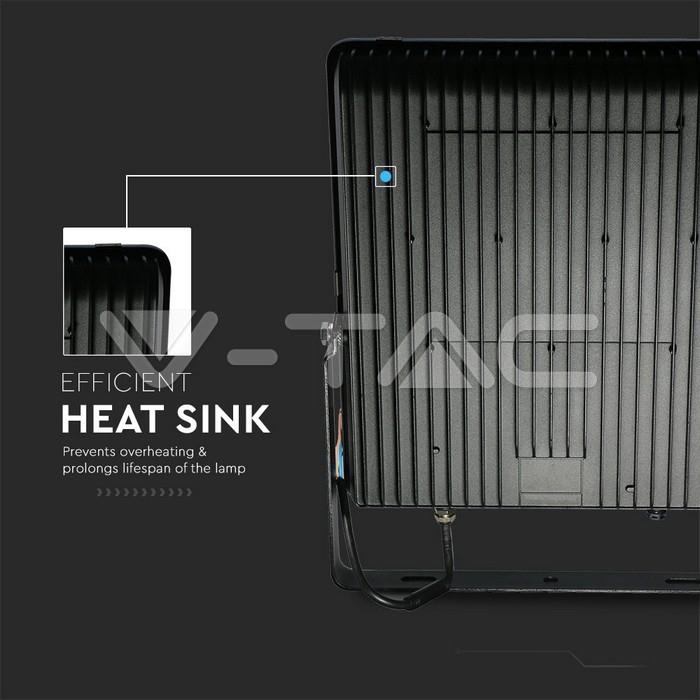

  • Premium Quality Aluminium Alloy body
  • Corrosion Resistant
  • Fascia glass sealed with silicone rubber ensuring superior waterproof / airtight performance
  • High Power LED chips
  • Built in constant current driver
  • Built in Power supply, No external ballast required

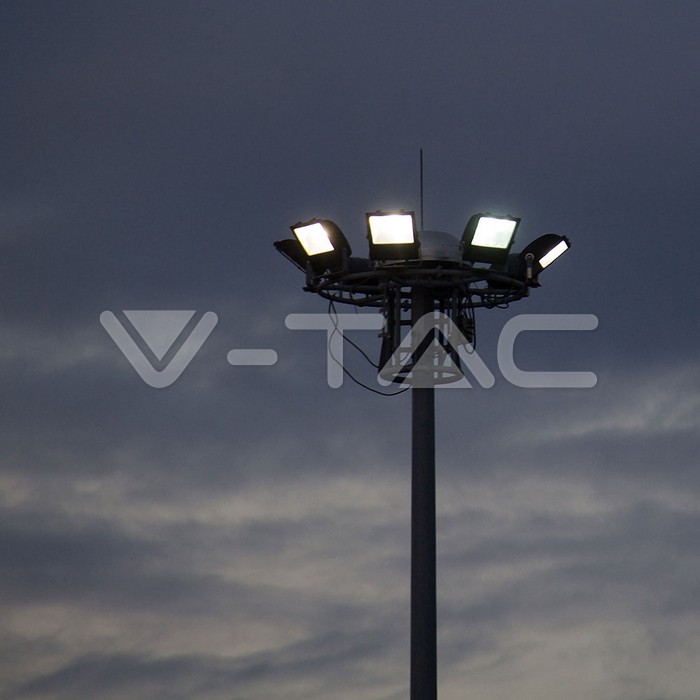

Applications

  • Driveways
  • Gardens
  • Bill Boards

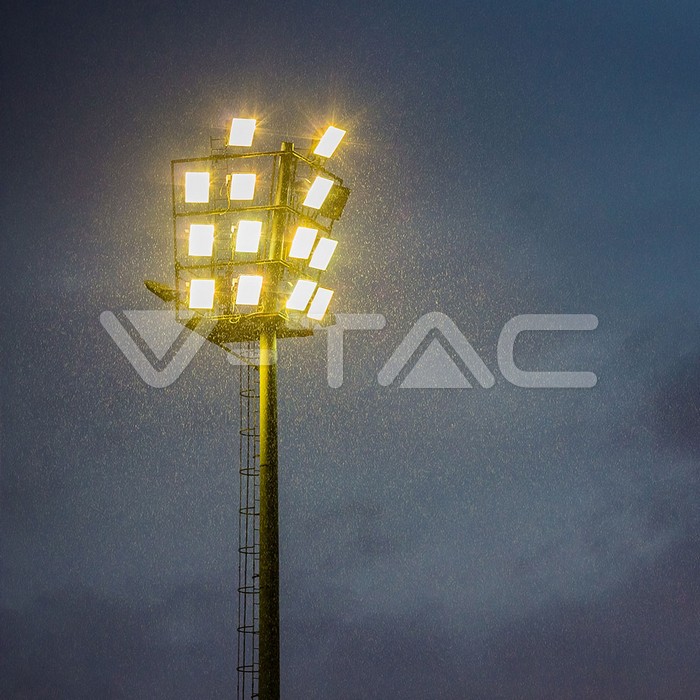

  • Sports Grounds
  • Parking Lots etc.
Downloads
Manual
IES File
RoHS Report
ЕМС Report
EMC License
LVD License
RoHS License
LVD Report
Declaration of Conformity
Product Information Sheet
Specifications
General Information

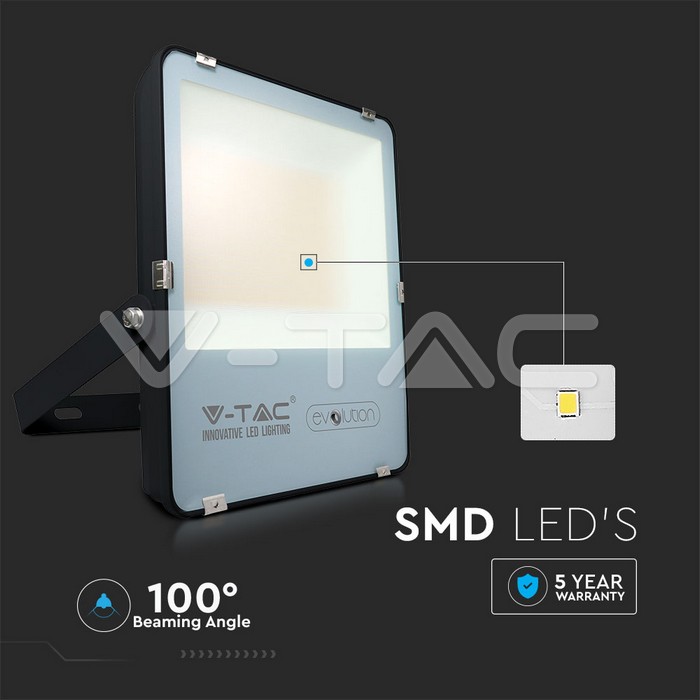

LED Chip
SMD
Lifespan
30 000 hrs
Electrical Data
Wattage
200W
Voltage
AC: 220-240V
Frequency
50Hz
Power Factor
>0.9
Technical Data

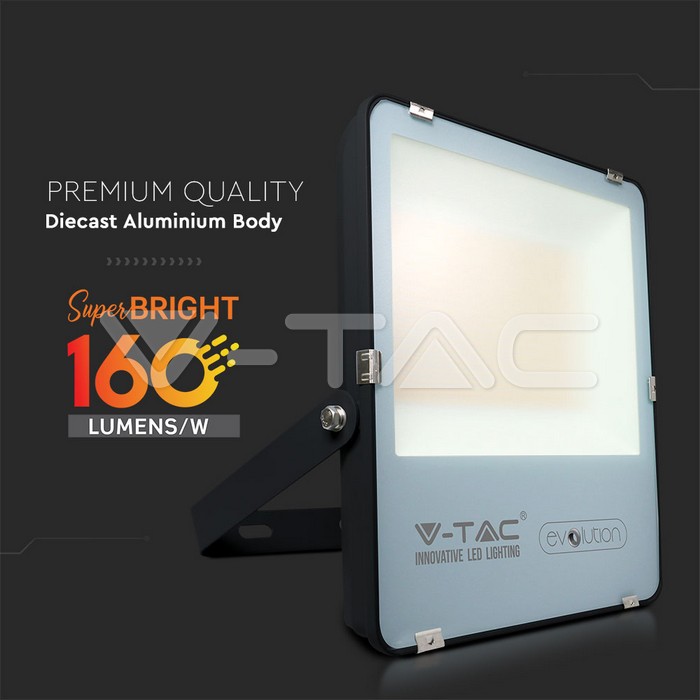

Luminous efficiency (lm/W)
160 lm/W
Light color
White
Color Temperature
6400K
Luminous flux (lm)
32000 lm
Color Rendering Index CRI
>70
Body Details
Material
Aluminium
Capabilities
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
On/Off cycles
>15000
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
IK Rating
IK06

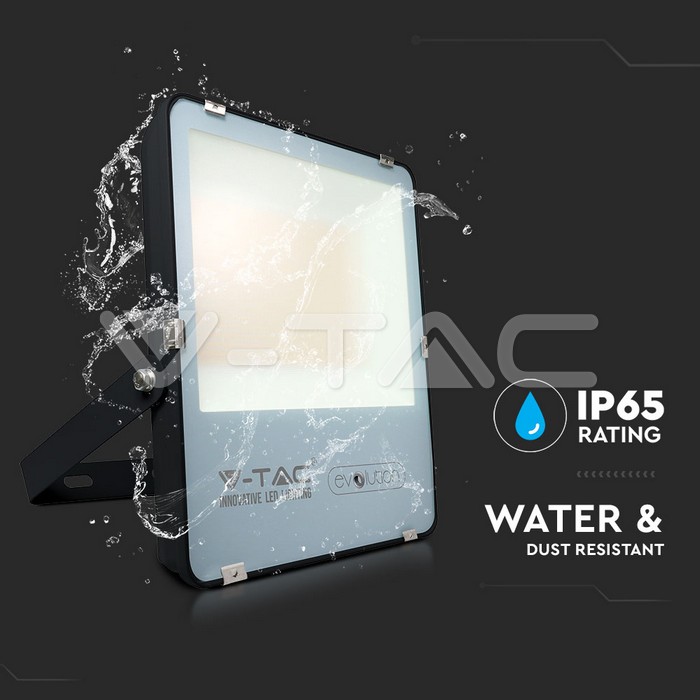

IP Rating
IP65

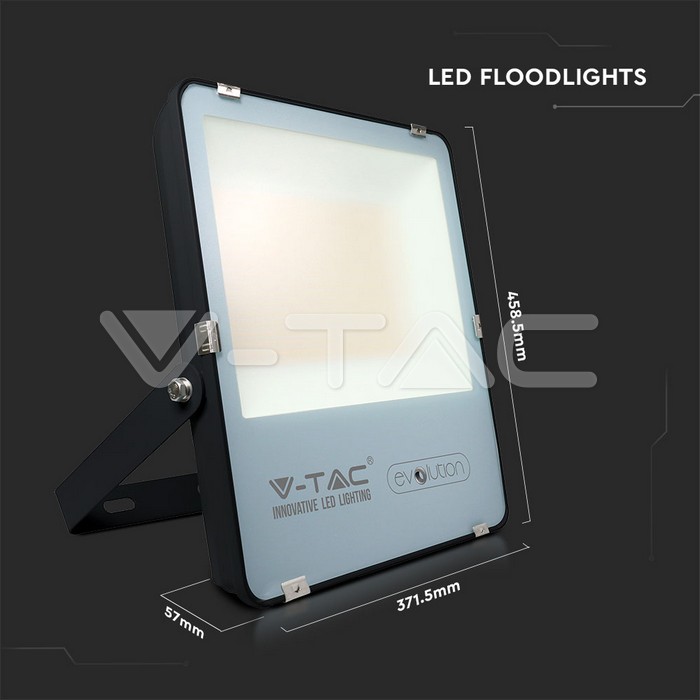

Dimensions
Size
371 x 57 x 458.5 mm
Wire Length
1m
Product Data
Order code
5923
Product code
VT-49261
Items per pack
1
Item Weight
2,6
Item Volume
0,01035
Items per box
2
EAN Code
3800157654753
Certificates & Standards
Energy efficiency class
B
Certification
CE, EMC, ROHS
Additional
Release Date
24.04.2020
Warranty
5 years
Energy Class Graphics
Energy Class
Dimensions Graphics
Dimensions
Manufacturer
V-TAC
